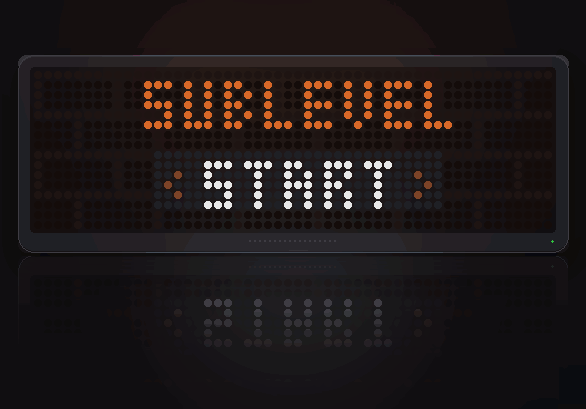

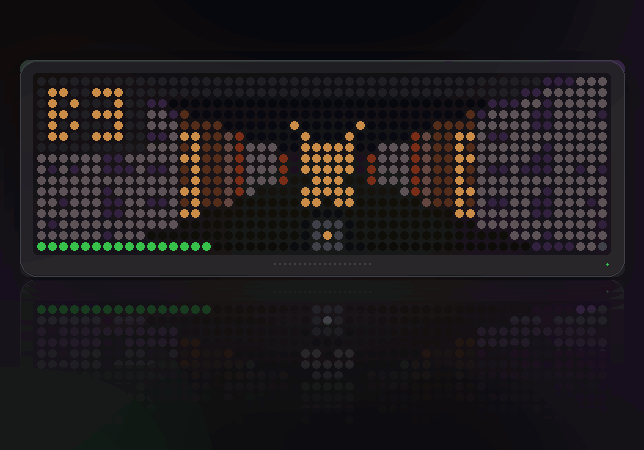

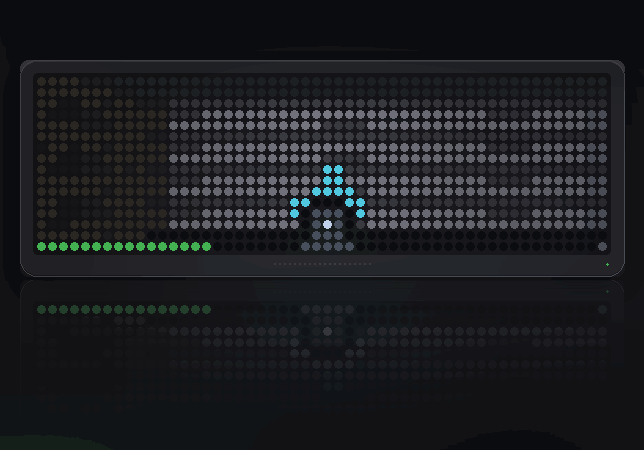

Sublevel shown on an AWTRIX display
Sublevel · by Galadril

On your display

Brick-lit corridors, three things that want you dead, five guns to reload, and a torch that only reaches so far.

Which AWTRIX do you have? See below where it runs, or choose your device.
Topic
Gaming
Includes
Script

Runs on

  • Does not run on 32×8 (TC001 & DIY) Made for 52×16 (TC002). Needs the built-in synthesizer and sound effects over music.
  • Runs on 52×16 (TC002)
  • Does not run on 32×8 with AWTRIX 3 (TC001 & DIY) Made for AWTRIX NG.

Choose your display in the next step.

Send to AWTRIX

Choose your AWTRIX

SublevelAWTRIX NG script

Install this script on your AWTRIX NG. Its icons and sounds are installed with it.

Your AWTRIX’s local address, for example 192.168.178.39 or awtrix.local.

The name shown in your AWTRIX script list. Use letters, digits, hyphens or underscores.

Connection & device login

Connect your phone or computer to the same network as your AWTRIX. Allow local network access if your browser asks.

Use the device’s IP address, without a page path such as /#/apps.

If your AWTRIX requires a login, the username and password fields will appear when you connect.

Sign in to the Hub to install scripts. Attached files are installed separately.

Script description

Brick-lit corridors, three things that want you dead, and a torch that only reaches so far.

Panel: 52x16 · Launch it from the menu — it is not in the rotation

A shooter on sixteen rows

A raycaster draws one vertical strip of wall per screen column, so a 52-pixel
panel wants exactly 52 rays. The letterbox that makes everything else on this
display cramped is the one shape this technique naturally produces.

What makes it a game rather than a walk is what is in the corridors with you.

The light is the point

Brightness falls off with distance and with how far a column sits from the
centre of your view, so the light reads as something you are carrying rather
than as the room being lit. The far end of a corridor is genuinely dark.

That is not decoration. It is why a thing stepping out of the dark lands.

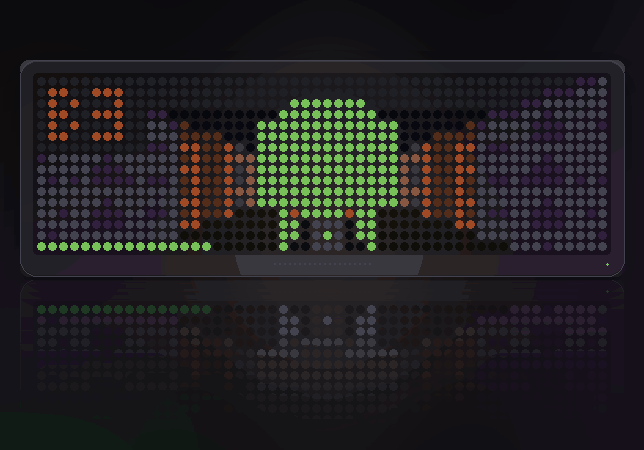

The walls are brick — eight to a tile, mortar where the ray crosses a joint,
alternate courses offset by half a brick. The texture coordinate comes free
from the raycast, so it costs nothing and it is the difference between a
corridor and a slab of colour.

Three things want you dead

Not one creature in three colours — each has its own silhouette, because at
eight pixels tall a palette swap is not a different animal.

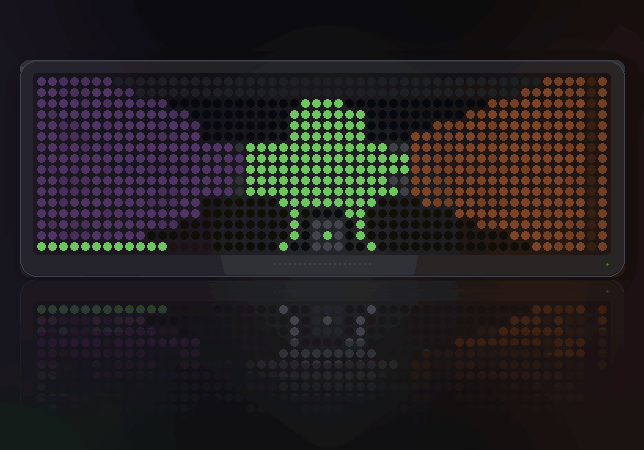

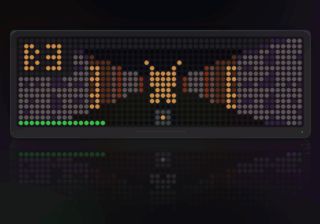

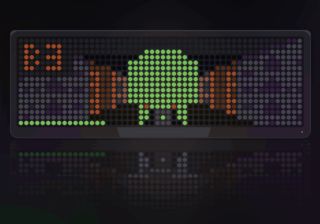

  • Grunt — horned and hunched with claws out, two hits, middling speed, dark
    red.
  • Runner — small head, long splayed legs, one hit and it drops. Quick, and
    sickly green. These are the ones that get behind you.
  • Brute — huge shoulders with its head sunk between them, four hits, slow,
    and it swings for nearly twice what a grunt does. Violet, and visibly bigger
    before it reaches you.

They roam when they cannot see you and hunt when they can — and they hear you
from five cells away, so a wall is cover, not safety. Runners appear on the
second floor, brutes on the fourth.

When something hits you the edge of the screen flashes red on the side it
came from
. On a 66-degree view most of what hurts you is behind you, and an
undirected flash tells you nothing.

Only one of them can land a hit at a time, with a moment before the next — so
being cornered is dangerous but never instant, and backing out of a room is
always worth trying.

Five guns, and the time it takes to reload them

  • Pistol — one shot a third of a second, never runs out, no magazine. You
    always have it, so being out of ammo is a step down rather than a dead end.
  • Shotgun — wide, hits up to three at once, two in the magazine.
  • Rifle — nine shots a second, narrow, eight in the magazine.
  • Minigun — eighteen a second with the barrels turning, thirty rounds, and
    the longest reload in the game. Hold it down and hope.
  • Railgun — one round, four damage, and it goes through up to five of them
    in a line. Then you are standing there reloading.

Everything but the pistol has a magazine, and emptying it drops the gun out of
the bottom of the view while it reloads. For as long as it is down you cannot
shoot. That is the whole reason the railgun's one enormous shot is not simply
the best option in every situation — it is also why the pistol, which never
reloads, is worth going back to.

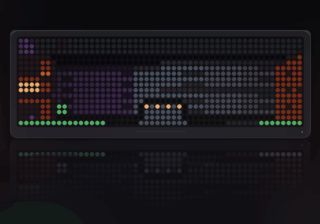

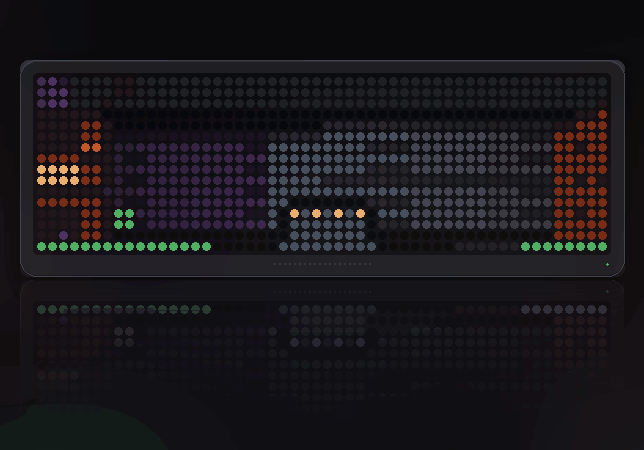

Ammo is a shared pool. The bottom right shows what is in the gun brightly over
what is left in the pool dimly, and during a reload it becomes a bar filling
up, so there is something to watch while you wait.

L1 and R1 cycle between the guns you are carrying. Lying about on each
floor: ammo, a medkit, and a gun you do not have yet. They pulse so
they catch the eye at the end of a dark corridor.

On the clock's three buttons there is no cycle — SELECT fires and holding it
quits — so there, walking over a gun simply equips it.

Floors

Clear every creature and the next floor builds itself — a fresh maze, seeded,
and one more thing in it than last time, up to nine. You get a little health
back on the way down. There is no final floor; the score is how far you got
and how many you took with you, and both are on the screen when you die.

Controls

  • LEFT / RIGHT — turn
  • SELECT — fire. Again to restart when you are dead.
  • Gamepad — the D-pad walks and turns, A fires, B backs up, the
    shoulders change gun and the triggers strafe, which is the one thing
    three buttons cannot offer

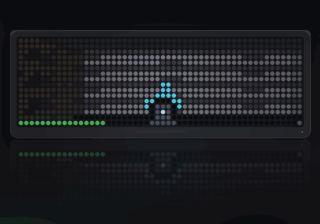

There is no crosshair. It went in as two dots, then as a proper cross, and both
sat in the middle of a sixteen-row view competing with whatever you were trying
to look at. The bore of the gun is directly below centre and the tracer runs up
through it, which is as much aiming reference as this panel can afford.

While nobody is playing

It plays itself — hunts, shoots, and walks the maze. Any input takes it back
and starts you a fresh run, and once you are playing it never takes over again,
however long you stand still.

Settings

  • Sound effects (on) — shots, hits, the growl of something out of sight
  • Music (on) — a low drone, well under the effects
