ScriptAWTRIX NG

EggTimer

by Töm11 Aug 2026
On an AWTRIX display

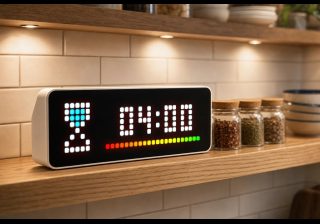

EggTimer shown on an AWTRIX display
EggTimer · by Töm

On your display

EggTimer, also useful for tea...

Which AWTRIX do you have? See below where it runs, or choose your device.
Topic
Miscellaneous
Includes
Script

Runs on

  • Runs on 32×8 (TC001 & DIY)
  • Runs on 52×16 (TC002)
  • Does not run on 32×8 with AWTRIX 3 (TC001 & DIY) Made for AWTRIX NG.

Choose your display in the next step.

↓ Download script
Send to AWTRIX

Choose your AWTRIX

EggTimerAWTRIX NG script

Install this script on your AWTRIX NG. Its icons and sounds are installed with it.

Your AWTRIX’s local address, for example 192.168.178.39 or awtrix.local.

The name shown in your AWTRIX script list. Use letters, digits, hyphens or underscores.

Connection & device login

Connect your phone or computer to the same network as your AWTRIX. Allow local network access if your browser asks.

Use the device’s IP address, without a page path such as /#/apps.

If your AWTRIX requires a login, the username and password fields will appear when you connect.

Sign in to the Hub to install scripts. Attached files are installed separately.

Script description

EggTimer

Overview

This AWTRIX NG script provides an egg timer that counts down the configured minutes and seconds to 00:00.

The timer can be started and paused using the center button. You can also start the timer via the AWTRIX NG Web UI in the app settings.

Double-pressing the center button within one second resets the timer to the previously configured values. Make sure not to press the button too quickly in succession, otherwise the display may be switched off or on.

Use the left button to adjust the preset minutes and the right button to adjust the preset seconds.

Installation

Before installing the script, make sure that:

  • AWTRIX scripting is enabled.
  • AWTRIX NG firmware 1.0.10-dev or later is installed (required for the settings).
  • The script has been tested with AWTRIX NG firmware 1.0.15-dev.
  • The required LaMetric icons (see below) have been uploaded to AWTRIX NG.

Installation steps:

  1. Upload the required LaMetric icons.
  2. Install the script on your AWTRIX NG.
  3. Adjust the settings as required.

Icons

Before installing the script, use the AWTRIX NG web interface to install the following LaMetric icons:

  • 19105 – Timer idle
  • 42893 – Timer running
  • 44960 – Timer finished

Configuration

The following settings are available under Apps in AWTRIX NG:

  • Timer Min.: Set the timer duration in minutes (0–99).

  • Timer Sec.: Set the timer duration in seconds (0–59).

  • Alarm Duration Sec.: The message indicating that the timer has ended will be displayed for this duration

  • Alarm Message: This text will be displayed when the timer ends

  • Alarm Sound: Play a sound when the message indicating that the timer has ended is displayed

  • Text color: Change the color of the time display.

  • Progress bar: Displays the remaining time as a colored progress bar at the bottom of the display.

  • Always show running timer: Keeps the timer visible on the display for the entire duration of the timer (+20 seconds).

  • Start/Stop: Use this switch to start or stop the timer.

Privacy

No network connections are used.

Known bugs

Currently, the app also switches when the left and right buttons are used.

Changelog

v0.1 – Initial version
v0.2 – new notification when the timer ends, with an alarm sound, customizable text, and adjustable alarm duration, memory optimizations
v0.3 - Optimized Progress Bar
