ScriptAWTRIX NG

Knee-Deep in the Pixels

by aljoschairmer22 Oct 2026
On an AWTRIX display

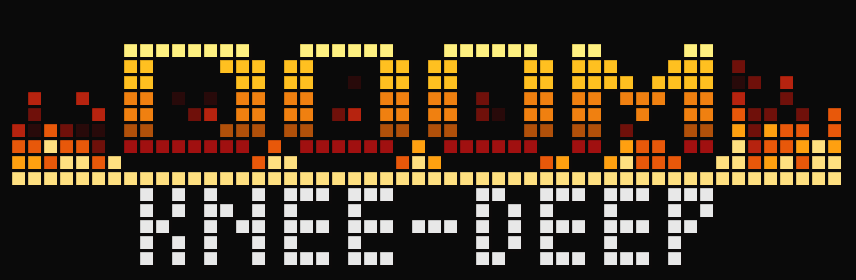

Knee-Deep in the Pixels shown on an AWTRIX display
Knee-Deep in the Pixels · by aljoschairmer

On your display

A Doom-style shooter for the 52x16 TC002: textured 3D view on all 16 rows, 8 maps, keycards, a DOOM 3 flashlight and a Hell Knight boss.

Which AWTRIX do you have? See below where it runs, or choose your device.
Topic
Gaming
Includes
Script

Runs on

  • Does not run on 32×8 (TC001 & DIY) Made for 52×16 (TC002). Needs a Bluetooth gamepad.
  • Runs on 52×16 (TC002) Gamepad: turn Bluetooth on and pair one under System → Gamepad on your AWTRIX.
  • Does not run on 32×8 with AWTRIX 3 (TC001 & DIY) Made for AWTRIX NG.

Choose your display in the next step.

↓ Download script
Send to AWTRIX

Choose your AWTRIX

Knee-Deep in the PixelsAWTRIX NG script

Install this script on your AWTRIX NG. Its icons and sounds are installed with it.

Your AWTRIX’s local address, for example 192.168.178.39 or awtrix.local.

The name shown in your AWTRIX script list. Use letters, digits, hyphens or underscores.

Connection & device login

Connect your phone or computer to the same network as your AWTRIX. Allow local network access if your browser asks.

Use the device’s IP address, without a page path such as /#/apps.

If your AWTRIX requires a login, the username and password fields will appear when you connect.

Sign in to the Hub to install scripts. Attached files are installed separately.

Script description

A Doom-style first-person shooter rebuilt from Chocolate Doom's game rules, made for the 52x16 panel.

Engine

  • 35 Hz tics and Doom's own random number table, so the game plays like the original.
  • Monster AI after Doom's source: monsters wake on sight and sound, chase, and fight each other.
  • Doors, keycards, secrets, nightmare respawns.

Graphics

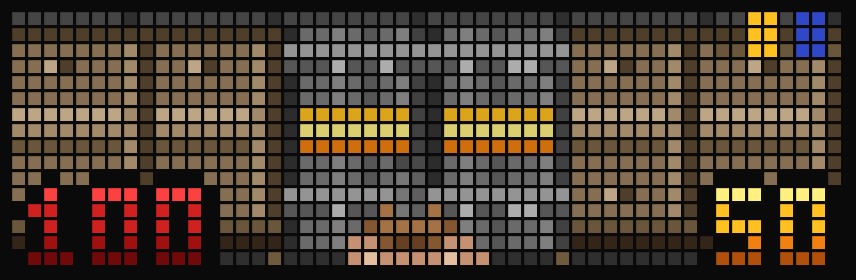

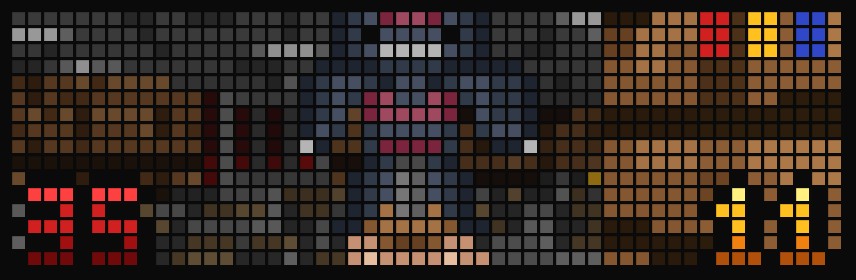

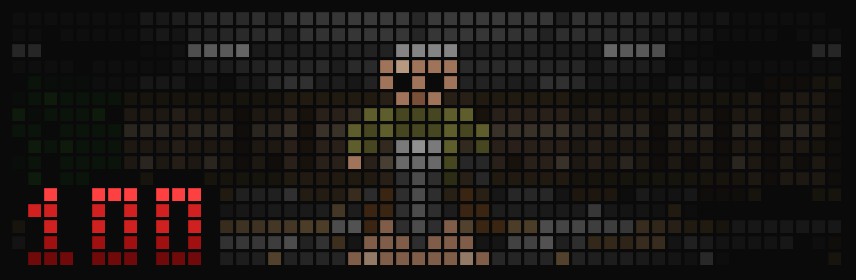

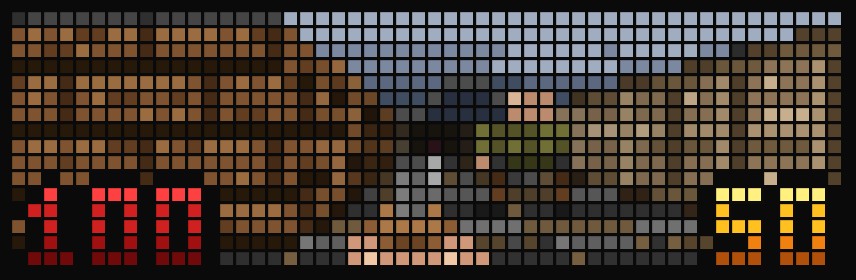

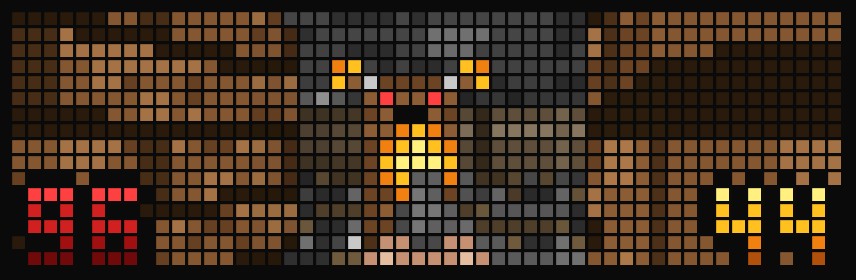

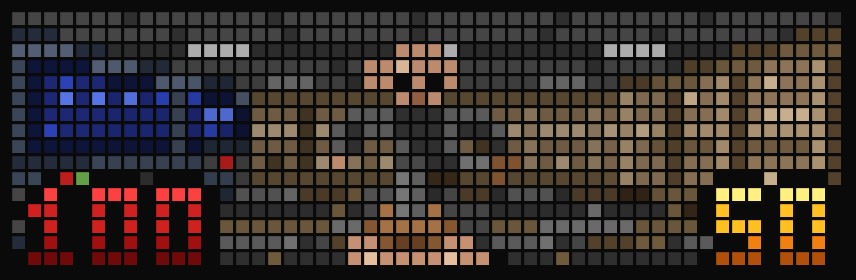

  • Full 16-row 3D view with original 16x16 textures, textured floors and ceilings, and a sky.
  • Light that fades with distance; dark and flickering rooms.
  • Pain and pickup flashes, the screen melt, and a fire title screen.

Episode

  • 8 maps, from OUTPOST to GATE.
  • Kills, items, secrets, time and par on the intermission screen.

Weapons: fist, pistol, shotgun and chaingun.

Monsters: zombieman, shotgun sergeant, imp, demon and chaingunner.

From DOOM 3

  • The flashlight: pitch-black rooms you can only see with the light on. While you hold the light you can't shoot.
  • The Hell Knight as the boss of E1M8. When it dies, the gate to the exit opens.

Sound: six original music tracks and about 20 sound effects for the TC002 synthesizer.

Controls

  • Gamepad: d-pad/left stick move and turn, right stick turn, L1/R1 strafe, A fire, B use, X flashlight, Y next weapon, SELECT map, START pause.

Settings: skill (baby to nightmare), music, sound effects, turn speed, HUD (fullscreen, status bar with face, or off), gamma, open doors by walking into them.

Credits:

  • Thanks to Blueforcer for his Doom script here on the Hub, which this independent version was compared against (none of its code is used).
  • Game rules after Chocolate Doom 3.1.1 by Simon Howard and contributors.
  • The random number table comes from Chocolate Doom's m_random.c (Copyright (C) 1993-1996 Id Software, Inc.; Copyright (C) 2005-2014 Simon Howard).
  • All maps, textures, sprites, sounds and music are original.
  • Fan-made, not affiliated with id Software or Bethesda. DOOM is a trademark of id Software.

License: GNU GPL, version 2 or later (GPL-2.0-or-later).
