ModuleAWTRIX NG

Sonos Local Protocol

by lucaamo4 Oct 2026
On an AWTRIX display

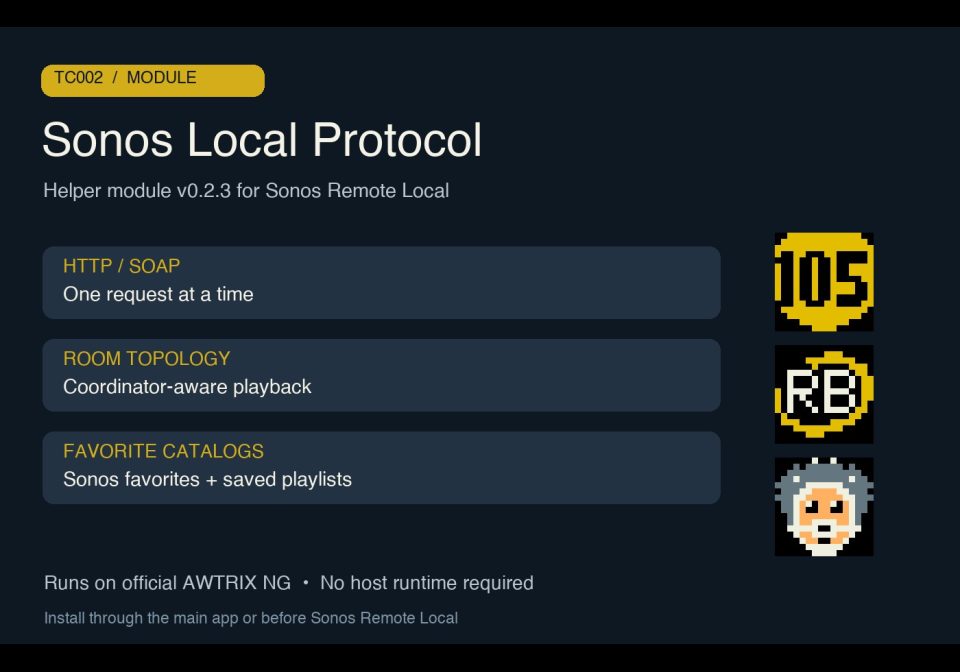

Sonos Local Protocol shown on an AWTRIX display
Sonos Local Protocol · by lucaamo

For your scripts

Sonos LAN protocol helper for Sonos Remote Local on TC002. No Home Assistant or MQTT.

A module, not an app: it shows nothing by itself and adds functions that your scripts import.

Which AWTRIX do you have? See below where it runs, or choose your device.
Topic
Smarthome
Includes
Module

Runs on

  • Does not run on 32×8 (TC001 & DIY) Made for 52×16 (TC002).
  • Runs on 52×16 (TC002)
  • Does not run on 32×8 with AWTRIX 3 (TC001 & DIY) Made for AWTRIX NG.

Choose your display in the next step.

↓ Download script
Send to AWTRIX

Choose your AWTRIX

Sonos Local ProtocolAWTRIX NG module

Install this script on your AWTRIX NG. Its icons and sounds are installed with it.

Your AWTRIX’s local address, for example 192.168.178.39 or awtrix.local.

The name shown in your AWTRIX script list. Use letters, digits, hyphens or underscores.

Connection & device login

Connect your phone or computer to the same network as your AWTRIX. Allow local network access if your browser asks.

Use the device’s IP address, without a page path such as /#/apps.

If your AWTRIX requires a login, the username and password fields will appear when you connect.

Sign in to the Hub to install scripts. Attached files are installed separately.

Flow description

Sonos Local Protocol — v0.2.3

Helper module for Sonos Remote Local 0.2.7 on the TC002, 52×16, using official, unmodified AWTRIX NG firmware. Developed and checked on firmware 1.1.7. This module is not a standalone display app.

It runs on the clock and talks directly to Sonos over the LAN using HTTP/SOAP: reads rooms and existing group coordinators, combines Sonos favorites and saved Sonos playlists, and implements queue playback, radio changes, transport and selected-room volume. One request runs at a time, with bounded catalog pages, response sizes and timeouts. Audio commands are not automatically retried.

Setup

Install under the exact module name sonos_local_protocol. Then install Sonos Local UI and Sonos Remote Local. Configure the seed Sonos IP in the main app, not here. The TC002 must be able to reach Sonos on the LAN, including TCP port 1400. No host computer, Home Assistant, MQTT broker or bridge is needed at runtime. Music services keep their normal account and internet requirements.

The main app supplies the Italiano / English interface and controls. Playback follows the selected room’s coordinator; volume follows the selected room. Existing groups are read and respected; creating groups, stereo pairs, Sub or surround configurations is not implemented.

Source, manual installation and limitations: GitHub. Community beta using unofficial Sonos interoperability; compatibility varies by source and speaker firmware.

License: PolyForm Noncommercial 1.0.0. Required Notice: Copyright © Stephan Mühl (Blueforcer) https://github.com/Blueforcer/awtrix-ng
