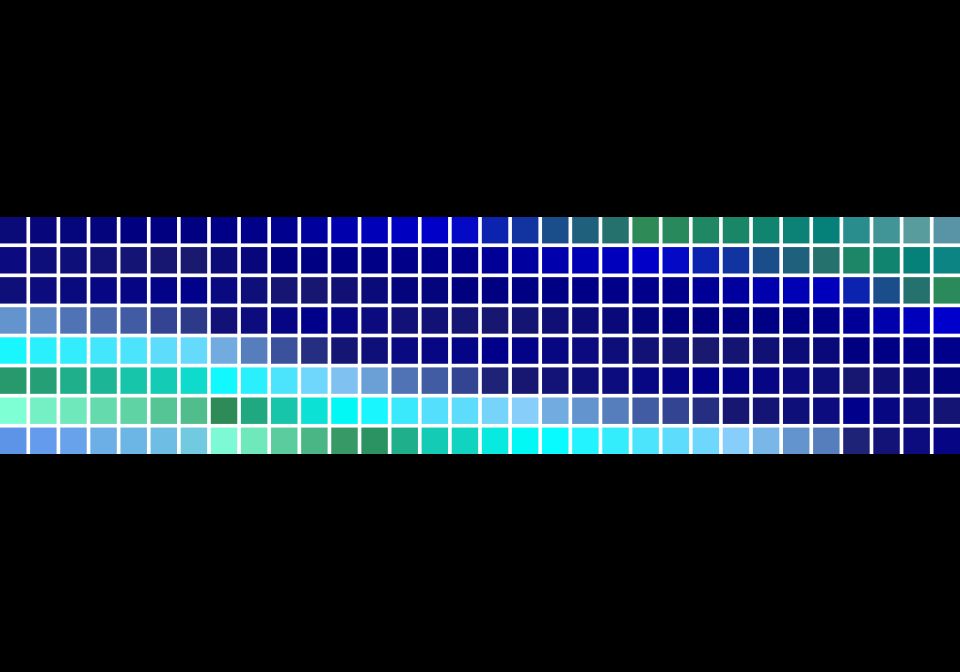

Random Effects/Animations

Random effects/animations as custom app.

Node-RED AWTRIX 3

Download flow

About this flow

Specifications
System	Node-RED
AWTRIX version	AWTRIX 3
Topic	Miscellaneous
Built by	Sinowine
File	zB235ed0OrLJ.json · 4.8 KB
Icons	—
Published	30 Aug 2023
Downloads	30

Is this your flow?

If you created this flow, open your saved edit link to add it to your account. You can then manage it whenever you sign in. Adding it to your account replaces the edit link.

This flow creates a custom app to display a random effect/animation. The random effect/animation will be changed every 5 minutes.

Configuration: Change the IP-Address in both "http-request"-Nodes to match with your Awtrix Light IP-Address. Set your favorite effects/animations in the function node.

This app comes with a separately possibility to manually receive a list of all available effects/animations.

Feel free to modify this flow in the way you like.

zB235ed0OrLJ.json

[
    {
        "id": "d2c51e5f2a28ce73",
        "type": "group",
        "z": "f1bd767b.b633f8",
        "name": "App: Animationen",
        "style": {
            "label": true
        },
        "nodes": [
            "db597bac.632ab",
            "f1ea4c95.e8238",
            "4cd3d03b.02d348",
            "2ceeacb8.9e020c",
            "a28b5445.778e1",
            "94974bcd9c208d22"
        ],
        "x": 14,
        "y": 659,
        "w": 772,
        "h": 162
    },
    {
        "id": "db597bac.632ab",
        "type": "http request",
        "z": "f1bd767b.b633f8",
        "g": "d2c51e5f2a28ce73",
        "name": "Awtrix/Effects",
        "method": "GET",
        "ret": "obj",
        "paytoqs": "ignore",
        "url": "http://192.168.178.23/api/effects",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [],
        "x": 340,
        "y": 780,
        "wires": [
            [
                "4cd3d03b.02d348"
            ]
        ],
        "icon": "font-awesome/fa-align-left"
    },
    {
        "id": "f1ea4c95.e8238",
        "type": "inject",
        "z": "f1bd767b.b633f8",
        "g": "d2c51e5f2a28ce73",
        "name": "Effekte auslesen",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 140,
        "y": 780,
        "wires": [
            [
                "db597bac.632ab"
            ]
        ]
    },
    {
        "id": "4cd3d03b.02d348",
        "type": "debug",
        "z": "f1bd767b.b633f8",
        "g": "d2c51e5f2a28ce73",
        "name": "",
        "active": true,
        "tosidebar": true,
        "console": false,
        "tostatus": false,
        "complete": "false",
        "statusVal": "",
        "statusType": "auto",
        "x": 600,
        "y": 780,
        "wires": []
    },
    {
        "id": "2ceeacb8.9e020c",
        "type": "function",
        "z": "f1bd767b.b633f8",
        "g": "d2c51e5f2a28ce73",
        "name": "Awtrix: Zufälliger Effekt",
        "func": "var usingEffects = [\n    \"Fade\",\n    \"BrickBreaker\",\n    \"PingPong\",\n    \"Radar\",\n    \"Checkerboard\",\n    \"Fireworks\",\n    \"PlasmaCloud\",\n    \"Ripple\",\n    \"Snake\",\n    \"Pacifica\",\n    \"TheaterChase\",\n    \"Plasma\",\n    \"Matrix\",\n    \"SwirlOut\",\n    \"LookingEyes\",\n    \"TwinklingStars\"\n];\n//Effects not in use:\n//\"MovingLine\"\n//\"SwirlIn\"\n//\"ColorWaves\"\n\nvar countedEffects = usingEffects.length;\nvar randomNumber = Math.round(Math.random() * countedEffects);\nvar randomEffect = usingEffects[randomNumber];\n\nmsg.payload = { \"effect\": randomEffect };\nreturn msg;\n",
        "outputs": 1,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 370,
        "y": 700,
        "wires": [
            [
                "94974bcd9c208d22"
            ]
        ]
    },
    {
        "id": "a28b5445.778e1",
        "type": "inject",
        "z": "f1bd767b.b633f8",
        "g": "d2c51e5f2a28ce73",
        "name": "Alle 5 Minuten",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "300",
        "crontab": "",
        "once": false,
        "onceDelay": 0.1,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 140,
        "y": 700,
        "wires": [
            [
                "2ceeacb8.9e020c"
            ]
        ]
    },
    {
        "id": "94974bcd9c208d22",
        "type": "http request",
        "z": "f1bd767b.b633f8",
        "g": "d2c51e5f2a28ce73",
        "name": "AwtrixUlanzi/CustomApp",
        "method": "POST",
        "ret": "obj",
        "paytoqs": "ignore",
        "url": "http://192.168.178.23/api/custom?name=animationen",
        "tls": "",
        "persist": false,
        "proxy": "",
        "insecureHTTPParser": false,
        "authType": "",
        "senderr": false,
        "headers": [
            {
                "keyType": "Content-Type",
                "keyValue": "",
                "valueType": "other",
                "valueValue": "application/json"
            }
        ],
        "x": 640,
        "y": 720,
        "wires": [
            []
        ],
        "icon": "font-awesome/fa-align-left"
    }
]
