Awtrix Phone Battery Notification%

Flow description

blueprint:
  name: Awtrix Phone Battery Notification

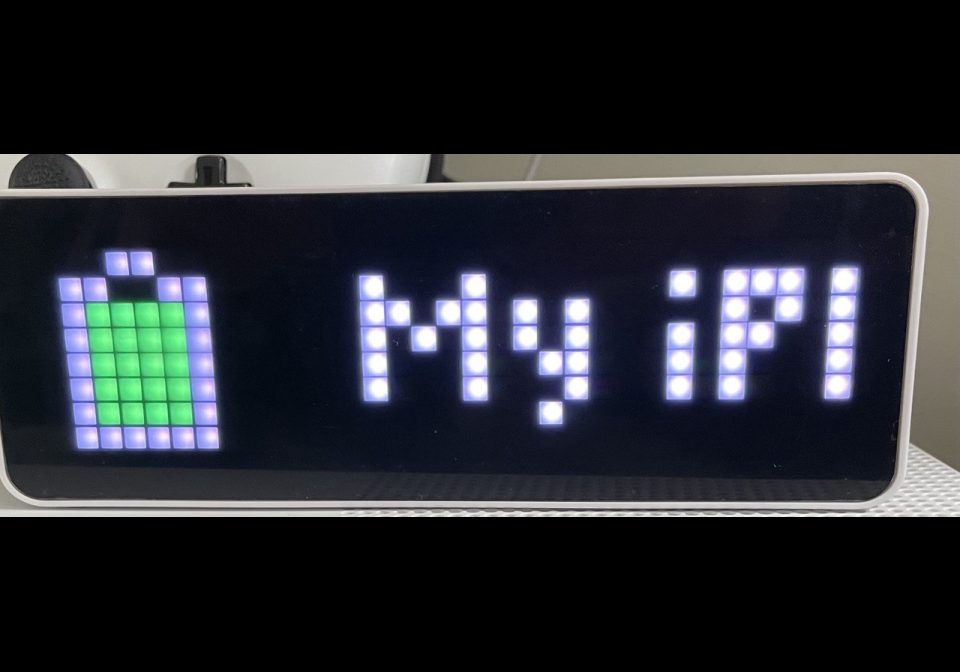

  description: Phone Charging indicator on Awtrix Display.
  domain: automation
  author: Sevag
  input:
    awtrix_light:
      name: Awtrix Display
      description: Select the target Awtrix display.
      selector:
        device:
          model: "AWTRIX Light"
    mobile_battery:
      name: Phone or device
      description: select your Phone Battery.
      selector:
        entity:
          filter:
            - integration: mobile_app
              device_class:
                - battery
                - state
          multiple: false
    toggle_on:
      name: Toggle on
      description: Select the Toggle Helper that will toggle the automation on or off.
      selector:
        entity:
          domain: input_boolean
    message_text:
      name: Notification Text
      description: Enter the notification text.
      default: "My Phone Battery is"
    icon_in:
      name: Icon
      description: Enter the Icon Name or ID of the icon.
      selector:
        text:
      default: ""
    push_icon:
      name: Push Icon
      description: Icon behavior
      selector:
        select:
          options:
            - label: "Icon doesn't move"
              value: "0"
            - label: "Icon moves with text and will not appear again"
              value: "1"
            - label: "Icon moves with text but appears again when the text starts"
              value: "2"
          mode: dropdown
      default: "2"
    duration:
      name: Duration (in seconds)
      description: Sets how long the app should be displayed unit is seconds.
      default: "10"
    text_case:
      name: Text Case
      description: Select how you would like your text to display.
      selector:
        select:
          options:
            - label: "Use global setting"
              value: "0"
            - label: "Force Uppercase"
              value: "1"
            - label: "Show as you entered it"
              value: "2"
          mode: dropdown
      default: "2"
    background_color:
      name: Background Color
      description: Select the Background color
      selector:
        color_rgb:
      default: [0, 0, 0]
    text_color:
      name: Text Color
      description: Select the Text color.
      selector:
        color_rgb:
      default: [255, 255, 255]
    show_rainbow:
      name: Rainbow Colors
      description: Should the notification be shown in Rainbow colors?
      selector:
        boolean:
      default: false


mode: queued

trigger:
  - platform: time_pattern
    seconds: /10

variables:
  device_id: !input awtrix_light
  awtrix_light: "{{ iif( device_attr(device_id, 'name_by_user') != none, device_attr(device_id, 'name_by_user'), device_attr(device_id, 'name') ) }}"
  my_sensor: !input  mobile_battery
  message_text: !input message_text
  all_text: >
    {{ message_text }}{{ ' ' }}{{states(my_sensor, "state" , "unit_of_measurement" )}}
  duration_on: !input duration
  show_rainbow: !input show_rainbow
  push_icon: !input push_icon
  icon_in: !input icon_in
  background_color: !input background_color
  text_color: !input text_color
  text_case: !input text_case
  toggle_con: !input toggle_on


condition:
  - condition: state
    entity_id: !input toggle_on
    state: "on"

action:
  service: mqtt.publish
  data:
    qos: 0
    retain: false
    topic: "{{awtrix_light}}/notify"
    payload: |-
      {
        "text": "{{ all_text }}",
        "icon": "{{ icon_in }}",
        "background": {{ background_color }},
        "color": {{ text_color }},
        "textCase": {{ text_case }},
        "pushIcon": {{ push_icon }},
        "rainbow": {{ iif(show_rainbow, "true", "false") }},
        "duration": {{ duration_on }}
      }

This flow uses the following icons. Add them to your AWTRIX along with the flow.

Sign in to download these icons or send them to your AWTRIX.
