Solar Power Monitor (Home Assistant)
Use with Home Assistant Blueprint
Shows your current solar production in W/kW with an animated icon that changes with the production.
- Topic
- Smarthome
- Includes
- Flow
Runs on
- Runs on 32×8 (TC001 & DIY)
- Does not run on 52×16 (TC002) Made for 32×8 (TC001 & DIY).
- Does not run on 32×8 with AWTRIX 3 (TC001 & DIY) Made for AWTRIX NG.
Flow description

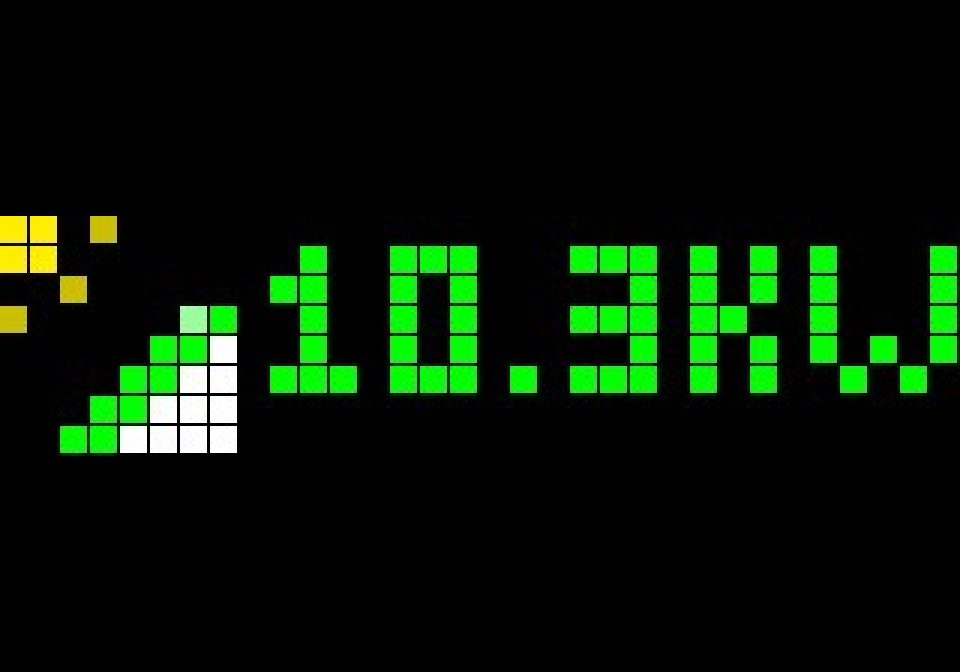

Shows the current solar production on your AWTRIX NG display (32×8) as a pushed app. Icon and text color follow the production:
| Production | Icon | Color |
|---|---|---|
| above high threshold (default 400 W) | solar-roof-high |
green |
| above low threshold (default 100 W) | solar-roof-mid |
yellow |
| above 0 W | solar-roof-low |
orange |
| 0 W | solar-roof-night |
gray |
Values above 1000 W are shown in kW. Optionally the app is removed at 0 W or during a night window.
Requirements
- Home Assistant with the MQTT integration
- AWTRIX NG with MQTT and Home Assistant discovery enabled (the display must provide the
mqtt_prefixsensor) - A sensor with the current solar production in watts
Setup
- Send the four icons to your AWTRIX (see the Icons tab of this flow).
- Import the blueprint into Home Assistant and create an automation from it.
- Select your display and the production sensor. Adjust the thresholds if needed.
- Set the app order once on the display. The app is named
solar_power.
The app is updated on every sensor change and every 5 minutes, and disappears after 6 minutes without an update.
Source and more blueprints: https://github.com/foundnobetter/ha-blueprints
Based on the flow Solar Energy Production by hupfis and highball.
