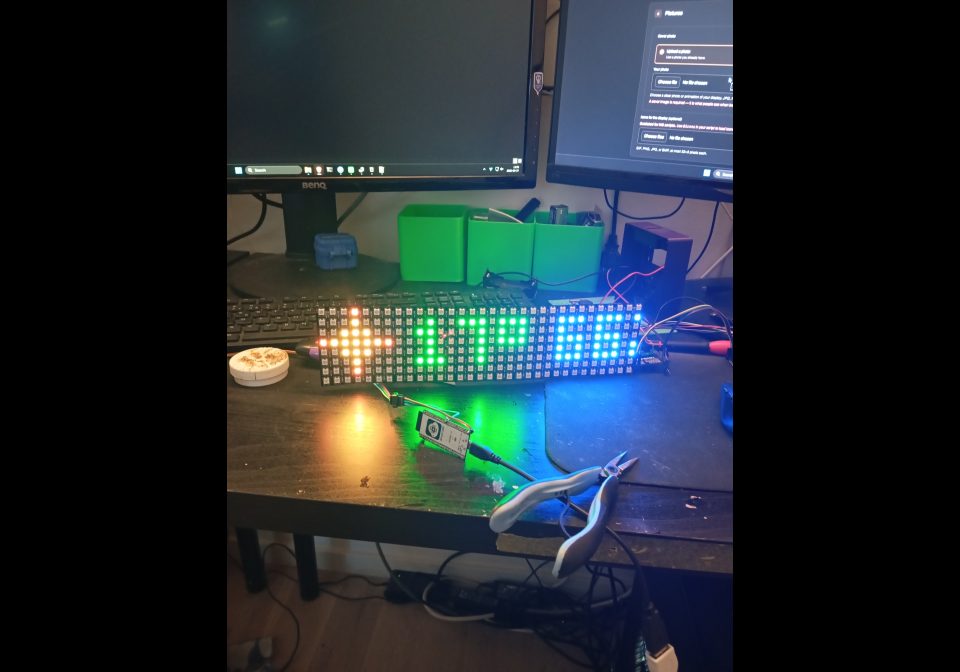

OWM forecast (openweathermap)

Flow description

# @name    Weather OWM
# @desc    Temperature, humidity, and weather conditions from OpenWeatherMap
# @author  the mighty MiMo
# @version 2.6
# @config  city      text   "City"         default="Arlöv" help="Spaces and å, ä, ö are encoded automatically"
# @config  key       text   "API key"      default="" help="OpenWeatherMap API key"
# @config  every     number "Refresh"      default=10 min=1 max=120 unit=min help="Minutes between fetches"
# @config  show_icon bool   "Weather icon" default=true help="8x8 symbol (sun/cloud/rain/snow/thunder)"
# @config  show_hum  bool   "Humidity"     default=true help="Show % next to the temperature"
# @config  show_desc bool   "Description"  default=true help="Scroll e.g. 'clear sky'"
# @config  show_wind bool   "Wind"         default=true help="Include m/s in the scroll line"

import json
import string

class WeatherOWM
  var url            # built once from the settings
  var key            # OpenWeatherMap API key, empty if not set yet
  var temp           # latest temperature in °C, nil until the first answer
  var hum            # humidity in %
  var sky            # 0 clear, 1 clouds, 2 rain, 3 snow, 4 thunder
  var label          # temperature as a string, e.g. "16°"
  var desc           # OWM description, e.g. "clear sky"
  var windtxt        # e.g. "5 m/s wind"
  var line           # finished scroll line, built from the flags
  var ticks          # loop() until the next fetch
  var period         # seconds between fetches
  var in_flight      # true while a request is running
  var page           # 0 = numbers, 1 = scrolling text
  var shown_at       # now_ms() when the app came up
  var o_icon, o_hum, o_desc, o_wind   # on/off settings

  def init()
    self.key = store.get("key", "")
    self.url = "https://api.openweathermap.org/data/2.5/weather?q=" +
               self.enc(store.get("city")) +
               "&appid=" + self.key +
               "&units=metric&lang=en"
    self.period = store.get("every") * 60
    self.o_icon = store.get("show_icon")
    self.o_hum = store.get("show_hum")
    self.o_desc = store.get("show_desc")
    self.o_wind = store.get("show_wind")

    self.temp = store.get("temp")
    self.hum = store.get("hum")
    self.sky = store.get("sky", 0)
    self.desc = store.get("desc", "")
    self.windtxt = store.get("windtxt", "")
    self.label = self.temp == nil ? nil : self.format(self.temp)
    self.build_line()

    self.ticks = 0
    self.in_flight = false
    self.page = 0
    self.shown_at = 0

    if size(self.key) == 0
      log("OWM: no API key set - open the app settings")
    end
  end

  # build the scroll line from the settings that are on
  def build_line()
    var out = ""
    if self.o_desc && size(self.desc) > 0
      out = self.desc
    end
    if self.o_wind && size(self.windtxt) > 0
      if size(out) > 0 out += " · " end
      out += self.windtxt
    end
    self.line = out
  end

  # percent-encode what may not go raw into a URL
  def enc(s)
    var t = string.replace(s, " ", "+")
    t = string.replace(t, "å", "%C3%A5")
    t = string.replace(t, "ä", "%C3%A4")
    t = string.replace(t, "ö", "%C3%B6")
    t = string.replace(t, "Å", "%C3%85")
    t = string.replace(t, "Ä", "%C3%84")
    t = string.replace(t, "Ö", "%C3%96")
    return t
  end

  def format(t)
    var half = t >= 0 ? 0.5 : -0.5
    return str(int(t + half)) + "°"
  end

  # map the OpenWeatherMap condition id to one of the five symbols
  def classify(id)
    if id >= 200 && id < 300 return 4 end
    if id >= 300 && id < 600 return 2 end
    if id >= 600 && id < 700 return 3 end
    if id == 800 return 0 end
    return 1
  end

  def on_body(body, status)
    self.in_flight = false
    if body == nil
      log("OWM: no response (status " + str(status) + ")")
      return
    end
    if status != 200
      log("OWM: HTTP " + str(status))
      return
    end

    var data = json.load(body)
    if !isinstance(data, map) return end

    var m = data.find("main")
    if !isinstance(m, map) return end
    var t = m.find("temp")
    if t == nil return end

    # condition id and description, e.g. 800 "clear sky"
    var id = 800
    var d = ""
    var w = data.find("weather")
    if isinstance(w, list) && size(w) > 0
      if isinstance(w[0], map)
        id = int(w[0].find("id", 800))
        d = w[0].find("description", "")
      end
    end

    # wind in m/s
    var wind = ""
    var wi = data.find("wind")
    if isinstance(wi, map)
      var ws = wi.find("speed")
      if ws != nil
        wind = str(int(ws + 0.5)) + " m/s wind"
      end
    end

    self.temp = t
    self.hum = m.find("humidity")
    self.sky = self.classify(id)
    self.label = self.format(t)
    self.desc = d
    self.windtxt = wind
    self.build_line()

    store.set("temp", t)
    if self.hum != nil store.set("hum", self.hum) end
    store.set("sky", self.sky)
    store.set("desc", self.desc)
    store.set("windtxt", self.windtxt)

    var hs = self.hum == nil ? "?" : str(self.hum)
    log("OWM ok: " + self.label + " hum " + hs + "% | " + self.line)
  end

  def loop()
    if self.ticks <= 0
      self.ticks = self.period
      if !self.in_flight && size(self.key) > 0
        self.in_flight = true
        http.get(self.url, / b, st -> self.on_body(b, st))
      end
    end
    self.ticks -= 1
  end

  def on_show()
    self.page = 0
    self.shown_at = now_ms()
  end

  # 8x8 symbol drawn from rectangles and circles
  def glyph()
    if self.sky == 0
      circle_fill(3, 3, 2, 0xFFAA00)
      pixel(3, 0, 0xFF6600) pixel(0, 3, 0xFF6600)
      pixel(6, 3, 0xFF6600) pixel(3, 6, 0xFF6600)
      return
    end

    circle_fill(2, 4, 1, 0x8899AA)
    circle_fill(5, 3, 2, 0x8899AA)
    rect_fill(1, 4, 6, 2, 0x8899AA)

    if self.sky == 2
      pixel(2, 7, 0x3388FF) pixel(4, 6, 0x3388FF) pixel(6, 7, 0x3388FF)
    elif self.sky == 3
      pixel(2, 7, 0xCCEEFF) pixel(4, 6, 0xCCEEFF) pixel(6, 7, 0xCCEEFF)
    elif self.sky == 4
      pixel(4, 6, 0xFFDD00) pixel(3, 7, 0xFFDD00)
    end
  end

  def draw()
    clear()
    if self.label == nil
      text(1, 6, "...", 0x666666)
      return
    end

    # page 1: scrolling weather description
    if self.page == 1 && size(self.line) > 0
      scroll_text(self.line, 0x99CCFF)
      return
    end

    # page 0: symbol + temperature + humidity
    var left = 1
    if self.o_icon
      self.glyph()
      left = 9
    end

    var hstr = ""
    if self.o_hum && self.hum != nil
      hstr = str(self.hum) + "%"
    end

    var w1 = text_ink_width(self.label)
    var w2 = size(hstr) == 0 ? 0 : text_ink_width(hstr)
    var start = left + (width() - left - w1 - w2 - 2) / 2

    var c = 0x00FF00
    if self.temp >= 28
      c = 0xFF4000
    elif self.temp <= 0
      c = 0x00AAFF
    end
    var adv = text(start, 6, self.label, c)
    if size(hstr) > 0
      text(start + adv + 2, 6, hstr, 0x4488FF)
    end

    # after 4 s: show the scroll line (if one is selected)
    if size(self.line) > 0 && now_ms() - self.shown_at > 4000
      self.page = 1
    end
  end

  def on_button(btn)
    if btn == "select"
      self.ticks = 0
    end
  end
end

return WeatherOWM()
