Claude Usage

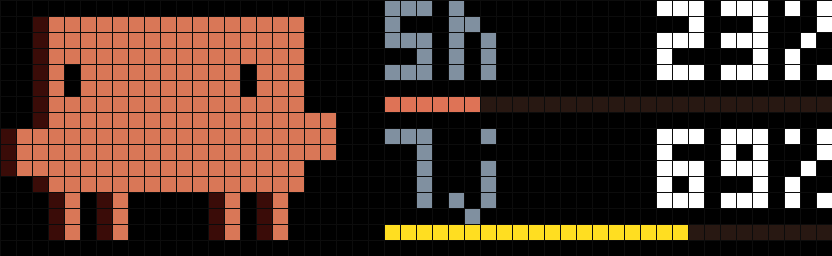

Your Claude plan usage on your AWTRIX clock: the 5 h session and the weekly percentage at the same time, on two rows, then the time left before each reset, next to a small pixel mascot whose mood follows how full your quota is. The numbers and bars turn from orange to yellow to red as you approach the limits.

Built for the Ulanzi TC002 (52x16 panel). The screens are laid out for 52x16 with fixed positions, see the notes at the end.

Read this first: where the data comes from

The app does not talk to Anthropic. It polls a URL that you provide (with one optional HTTP header, e.g. an API key) and displays whatever JSON that URL returns (contract below).

Anthropic does not offer a public API for subscription usage limits. You need your own backend that returns this JSON; the data source, and whether it complies with Anthropic's terms, is your responsibility. A simple way to test is a static JSON file or a mock endpoint.

This page deliberately does not explain how to fetch the numbers. It only covers the clock side.

Requirements

• A clock running an AWTRIX build with the Berry scripting engine (for the Ulanzi TC002: the AWTRIX NG port, e.g. sanderdw/awtrix-ng-tc002).
• An HTTP(S) URL, reachable from the clock, that returns the JSON described below.

The JSON contract

The clock does an HTTP GET and expects status 200 and a JSON object. All fields are optional; a value that is missing or null is shown as -- (or its screen is skipped, see below).

Rules:

• Numbers may be integers or decimals (decimals are truncated). null, a missing field, or a non-number (e.g. a string) means "no value": it is drawn as --. Percentages above 100 are drawn as 100.
• The reset minutes are relative to the moment the clock received the JSON; the clock counts them down on its own between polls (every 5 minutes).
• If the body is not a JSON object, or the status is not 200, the poll counts as failed (see "Errors and stale data").

Example:

{
  "s": 23,
  "sr": 137,
  "w": 69,
  "wr": 4410,
  "x": null,
  "err": null
}

Test it without any backend

Only to check the display. Save the example above as claude-usage.json and serve it with any web server, for instance from a PC of your LAN:

python -m http.server 8080

then use http://YOUR-PC-IP:8080/claude-usage.json as URL. Or, with n8n: import the small test workflow at the end of this section (Webhook, Edit Fields, Respond to Webhook), edit the numbers in Edit Fields, publish it and use http://YOUR-N8N:5678/webhook/claude-usage as URL. It only serves fixed example values; it does not fetch any real data. Change the values (e.g. "s": 91) to see the colours and the mascot change. The app polls every 5 minutes: after editing the JSON, change a setting or re-save the script to force a new read.

n8n test workflow (import it in n8n: Workflows > Import from file, or paste it into the editor):

{
  "name": "Claude Usage test endpoint for AWTRIX",
  "nodes": [
    {
      "parameters": {
        "httpMethod": "GET",
        "path": "claude-usage",
        "responseMode": "responseNode",
        "options": {}
      },
      "name": "Webhook",
      "type": "n8n-nodes-base.webhook",
      "typeVersion": 2,
      "position": [
        0,
        0
      ],
      "id": "aaf33cd2-d093-4268-b0e6-6e3570083f27",
      "webhookId": "3a6c87bc-3bd3-4f09-b721-7d8a604a994b"
    },
    {
      "parameters": {
        "assignments": {
          "assignments": [
            {
              "id": "981052a9-0b89-4879-8a4a-fd8d4bf1a8e3",
              "name": "s",
              "value": 23,
              "type": "number"
            },
            {
              "id": "b8703cfb-0672-422b-a6e1-66b85bb8408e",
              "name": "sr",
              "value": 137,
              "type": "number"
            },
            {
              "id": "ed766951-a134-4f4b-9065-3ea9a2eca1e9",
              "name": "w",
              "value": 69,
              "type": "number"
            },
            {
              "id": "12cc77d6-f6b4-4f71-afa0-bd84fee4af01",
              "name": "wr",
              "value": 4410,
              "type": "number"
            }
          ]
        },
        "options": {}
      },
      "name": "Edit Fields",
      "type": "n8n-nodes-base.set",
      "typeVersion": 3.4,
      "position": [
        240,
        0
      ],
      "id": "79129711-994d-46d2-a26a-8c032e743e75"
    },
    {
      "parameters": {
        "respondWith": "json",
        "responseBody": "={{ $json }}",
        "options": {}
      },
      "name": "Respond to Webhook",
      "type": "n8n-nodes-base.respondToWebhook",
      "typeVersion": 1.1,
      "position": [
        480,
        0
      ],
      "id": "7fead935-46ca-4be3-8d6d-0e32627a6c8e"
    },
    {
      "parameters": {
        "content": "## Claude Usage test endpoint\nEdit the numbers in \"Edit Fields\", then publish the workflow.\n\n- s / w = percent used (session / week)\n- sr / wr = minutes until the respective reset\n\nOptional fields x (extra usage, number) and err (error text) can be added as additional fields in \"Edit Fields\".\n\nThis is only a test source: it serves fixed example values and does not fetch any real data.",
        "height": 300,
        "width": 420
      },
      "name": "Sticky Note",
      "type": "n8n-nodes-base.stickyNote",
      "typeVersion": 1,
      "position": [
        0,
        -340
      ],
      "id": "c45d9710-d6f9-40a5-aa12-1fdd796e7bd4"
    }
  ],
  "connections": {
    "Webhook": {
      "main": [
        [
          {
            "node": "Edit Fields",
            "type": "main",
            "index": 0
          }
        ]
      ]
    },
    "Edit Fields": {
      "main": [
        [
          {
            "node": "Respond to Webhook",
            "type": "main",
            "index": 0
          }
        ]
      ]
    }
  },
  "settings": {
    "executionOrder": "v1"
  },
  "pinData": {}
}

Setup: clock

1. Install the script from this page (it is the compact version of the code, because the commented source is over the 8 KiB script limit).
2. Open the app settings and set JSON URL (e.g. http://YOUR-SERVER/claude-usage.json).
3. Header value (secret): the app only polls when this field is not empty (it sends the header Header name: Header value on every request). If your URL needs no authentication, enter any dummy value (e.g. x); the server can ignore the header.
4. Icons: the script uses four 22x16 mascot GIFs (claude_ok, claude_mid, claude_high, claude_ko). They are shared on this site: claude_ok, claude_mid, claude_high, claude_ko. Download them and upload each one to the clock (web interface, Icons) under exactly these names before the first run. The script header has an @icons line so the clock can offer to install them by name.

Settings

The clock polls every 5 minutes; after a failed poll it retries after 1 minute.

Screens

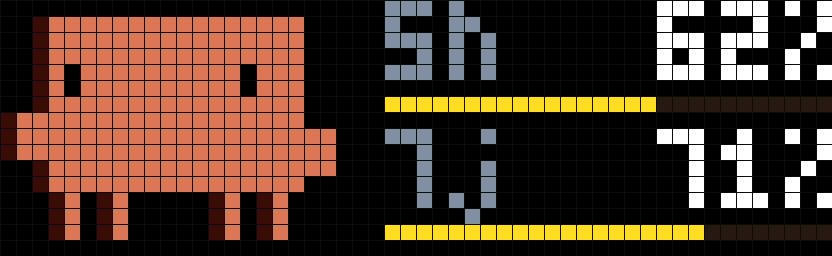

The mascot (22 px) is always on the left; the content starts at column 24. The content is two rows of 8 px: the top row is the 5 h session (label 5h), the bottom row is the week (label 7j). Each row has its label on the left, the value right-aligned, and a thin 1 px bar underneath.

A pass runs A, B, A, B... (the pair is repeated "Switches % / time" times, each screen for "Seconds per switch" seconds), then C once if present. If only A or only B exists it stays on screen for the whole time. With the defaults, a pass is 3 x 2 x 3 s = 18 s (+ 3 s with x). The screens do not loop: after the last one the app stays on it until the next app. Before the first data arrives, only the mascot is shown.

The labels are 5h (5 hours) and 7j. "j" stands for "jours" (days, French); the same j is used in the time format ("3j4h"). Edit them in the script if you prefer 7d.

Colours

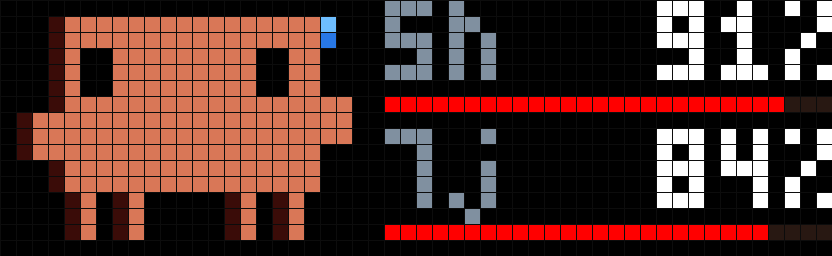

• Percentage rows: orange (below the warning threshold), yellow (from "Warning threshold"), red (from "High threshold"). A missing value is drawn as grey --.

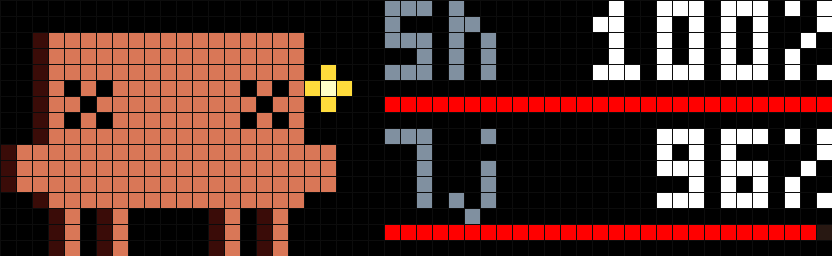

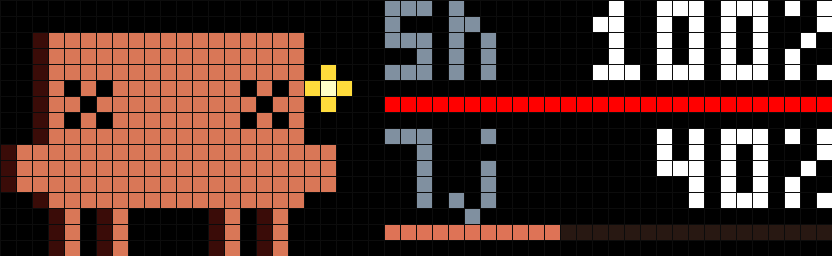

• Mascot: claude_ok below the warning threshold, claude_mid from it, claude_high from the high threshold, claude_ko at 100 %. It follows the worst of s and w, on every screen.

Errors and stale data

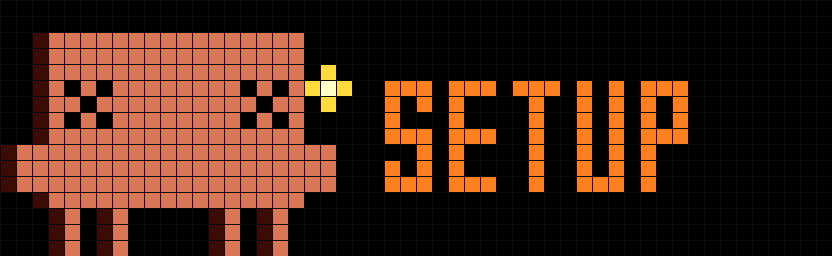

• err: "setup": a single SETUP screen (orange), mascot claude_ko. Meant for "the backend is not configured yet".
• err: "auth": a single AUTH screen (red), mascot claude_ko. Meant for "the backend's credentials were rejected".
• err: "api": the app keeps showing the last good values (also remembered across reboots) and a red dot lights up in the bottom right corner. If no good values exist yet, an API screen (red, mascot claude_high) is shown.
• A failed poll (network error, status other than 200, body that is not a JSON object): same red dot, last values kept, retry in 1 minute.
• After a reboot the cached values are shown with the reset minutes counting from the boot.

Notes

• Panel size. The layout is designed for the 52x16 panel of the TC002: positions and sizes are fixed (mascot 22x16, content from column 24, two 8 px rows). The script does not read width() / height(). On a 32x8 matrix it is untested and will need layout changes.
• Language. The weekly row is labelled 7j and days are shown as j in the time format, both French; edit them in the script if you prefer.
• Fan-made mascot. The four mascot icons are my own pixel-art drawings. This is an unofficial fan project, not affiliated with or endorsed by Anthropic. "Claude" and related marks belong to their owner.
