GitHub Heatmap

Show off your GitHub contributions right on your AWTRIX.

AWTRIX NG Scripts AWTRIX NG

Install on my AWTRIX… Download flow

About this flow

Specifications
System	AWTRIX NG Scripts
AWTRIX version	AWTRIX NG
Topic	Social
Built by	Golevka2001
File	fxaGdh4z8w5m.ax · 4.8 KB
Icons	—
Published	29 Aug 2026 · updated 1 Sep 2026
Downloads	72

Is this your flow?

If you created this flow, open your saved edit link to add it to your account. You can then manage it whenever you sign in. Adding it to your account replaces the edit link.

English | 简体中文

A GitHub contribution heatmap for AWTRIX NG, rendered on the 32×8 LED panel.

AWTRIX app ──▶ Cloudflare Worker ──GraphQL──▶ GitHub API
    ▲                 │
    └── 256 pixels ◀──┘    JSON array of 0xRRGGBB ints, 32×8 row-major

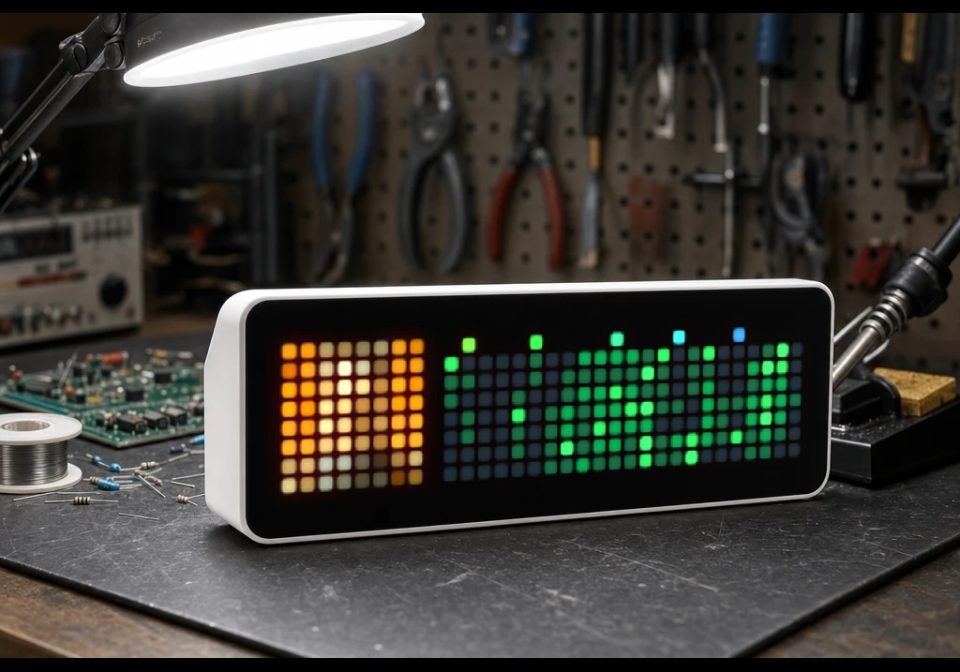

Rendering conventions: the panel shows the last 32 weeks; rows 1–7 map Sunday through Saturday, the rightmost column is the current week, and row 0 carries the month marker. With Show Avatar on, the leftmost 8 columns render the user's 8×8 avatar.

1. Create a GitHub token

The worker only reads public data, so a classic personal access token with the read:user scope is all it needs.

Create one at https://github.com/settings/tokens/new.
Name it and tick read:user.
Generate and store it somewhere safe. You will need it in step 2.

2. Deploy the worker

(Recommended) Deploy with the button

Click the button to deploy the worker.

Add a secret named GITHUB_TOKEN and paste the token from step 1.

Manual Deployment

To deploy manually instead, you need to clone the repo and install wrangler:

cd worker
wrangler secret put GITHUB_TOKEN  # paste the token from step 1
wrangler deploy

You will see a URL like https://awtrixng-github-heatmap-worker.xxx.workers.dev. Test it with your GitHub username:

curl "https://awtrixng-github-heatmap-worker.xxx.workers.dev/?user=<github-username>"
# [0,934953,27954,934953,...]  exactly 256 integers

You can also bind the worker to a custom domain instead of *.workers.dev.

3. (Optional) Protect the worker with Cloudflare Access

Left open, anyone with the URL can query arbitrary accounts and burn your API quota. Access control is recommended.

Create a new service token: Zero Trust - Access Controls - Service Credentials - Create Service Token.
Note the Client ID and Client Secret (the secret is shown only once).
Create a new Access policy: Zero Trust - Access Controls - Policies - Add a Policy.
- Include = Service Token - the token created above
- Action = Service Auth
Add an application: Zero Trust - Access Controls - Applications - Add an Application - Self-hosted - Workers.
- Destinations/Workers/Scope = awtrixng-github-heatmap-worker
- Access Policies = the policy created above

Test the worker again, you will see the Cloudflare Access error page:

curl "https://<worker-url>/?user=<github-username>"
# <!doctype html>
# <html>
#   <head>
#     <title>Error ・ Cloudflare Access</title>
# ...

You need to pass the service token in the CF-Access-Client-Id and CF-Access-Client-Secret headers:

curl "https://<worker-url>/?user=<github-username>" \
     -H "CF-Access-Client-Id: <client-id>" \
     -H "CF-Access-Client-Secret: <client-secret>"
# [0,934953,27954,934953,...]  exactly 256 integers

4. Install and configure the app

The app is published on AWTRIX Flows — install it from there, or visit the AWTRIX NG web interface, go to Scripts and paste github-heatmap.ax into a new script. Configure it with the following settings:

Setting	Value
Server URL	The worker URL from step 2
Username	GitHub username
(Optional) CF Access Client ID / Secret	The service token from step 3. Leave empty if not using Cloudflare Access
Rainbow Months	Color the month markers with a per-month hue; on by default
Split by Month	Add a gap between months; off by default
Show Avatar	Render the user's 8×8 avatar in the leftmost columns; off by default
Refresh	Refresh interval in minutes

Behavior notes: the select button forces an immediate refresh; failed requests back off exponentially starting at 30 s, capped at every; until the first fetch succeeds the panel shows ..., which becomes an orange ? once a fetch has failed.

fxaGdh4z8w5m.ax

# @name    GitHub Heatmap
# @desc    GitHub contribution heatmap via external worker
# @author  Golevka2001
# @version 1.5
# @config  server         text    "Server URL"  help="Worker endpoint URL"
# @config  user           text    "Username"  help="GitHub username"
# @config  client_id      text    "(optional) CF Access Client ID"
# @config  client_secret  text    "(optional) CF Access Client Secret"
# @config  rainbow        bool    "Rainbow Months"  default=1
# @config  split          bool    "Split by Month"  default=0
# @config  avatar         bool    "Show Avatar"  default=0
# @config  every          number  "Refresh"  default=60  min=1  unit=min

class GitHubHeatmap
  var url, usr, client_id, client_secret, rainbow, split, avatar, pixels, err
  # Refresh state: ticks counts down to the next fetch, span is the configured
  # interval in seconds, retry is the current backoff delay, busy means a
  # request is still out.
  var ticks, span, retry, busy

  def init()
    self.url = ""
    self.usr = ""
    var srv = store.get("server")
    var u = store.get("user")
    if srv != nil && srv != "" && u != nil && u != ""
      self.url = srv
      self.usr = str(u)
    end
    var cid = store.get("client_id")
    self.client_id = cid == nil ? "" : str(cid)
    var secret = store.get("client_secret")
    self.client_secret = secret == nil ? "" : str(secret)
    var rb = store.get("rainbow")
    self.rainbow = rb == nil ? true : rb
    var sp = store.get("split")
    self.split = sp == nil ? false : sp
    var av = store.get("avatar")
    self.avatar = av == nil ? false : av
    self.pixels = []
    self.err = false
    self.ticks = 0
    self.span = 60
    self.retry = 30
    self.busy = false
  end

  def setup()
    self.loop()
  end

  def on_button(btn)
    if btn == "select"
      self.now()
    end
  end

  def on_body(body, status)
    shared.set("f", 0)
    if status != 200 || body == nil
      self.failed()
      return
    end
    # Extract all numbers from the JSON array [n,n,n,...].  re.matchall is
    # cheaper than json.load on a 96 KB heap, and the full response is small
    # enough that find/keep is not needed.
    var m = re.matchall("[0-9]+", body)
    if m == nil || size(m) == 0
      self.failed()
      return
    end
    var n = size(m)
    var px = []
    for i : 0 .. n - 1
      px.push(int(m[i]))
    end
    if size(px) != 256
      self.failed()
      return
    end
    self.ok()
    self.pixels = px
  end

  def loop()
    if self.url != "" && self.due(store.get("every"))
      shared.set("f", 1)
      http.get(self.url, / b, st -> self.on_body(b, st),
               {'headers': {'CF-Access-Client-Id': self.client_id,
                            'CF-Access-Client-Secret': self.client_secret,
                            'X-User': self.usr,
                            'X-Rainbow': self.rainbow ? "1" : "0",
                            'X-Split': self.split ? "1" : "0",
                            'X-Avatar': self.avatar ? "1" : "0"}})
    end
  end

  # Fires at most once per interval, never while a request is out or another
  # app's TLS handshake is running (shared "f" flag, official convention).
  # Raises busy, so only call it when a request will actually be issued.
  def due(every)
    self.span = max(60, num(every, 1) * 60)
    if self.ticks > 0
      self.ticks = self.ticks - 1
      return false
    end
    if self.busy
      return false
    end
    for k : shared.keys()
      var n = size(k)
      if n > 2 && k[n - 2 .. n - 1] == ".f" && shared.get(k) == 1
        var a = shared.age(k)
        if a != nil && a < 20000
          return false
        end
      end
    end
    self.ticks = self.span
    self.busy = true
    return true
  end

  # failure backoff: retry at 30s, doubling, capped at the interval; raises
  # err so a fetch with no data yet can show "?" instead of "..."
  def failed()
    self.busy = false
    self.ticks = self.retry
    self.retry = min(self.retry * 2, self.span)
    self.err = true
  end

  def ok()
    self.busy = false
    self.retry = 30
    self.err = false
  end

  # Manual refresh: clears ticks, leaves busy alone so a press while a
  # request is out cannot fire a second one.
  def now()
    self.ticks = 0
    self.retry = 30
  end

  def draw()
    clear()
    if self.pixels == nil || size(self.pixels) == 0
      var s = self.err ? "?" : "..."
      var w = text_ink_width(s)
      text(int((width() - w) / 2), 6, s, self.err ? 0xCC7722 : 0x666666)
      return
    end
    # 32x8 panel, row-major: pixel index i → column i/8, row i%8
    for i : 0 .. size(self.pixels) - 1
      var c = self.pixels[i]
      if c != 0
        pixel(int(i / 8), i - int(i / 8) * 8, c)
      end
    end
  end
end

return GitHubHeatmap()
