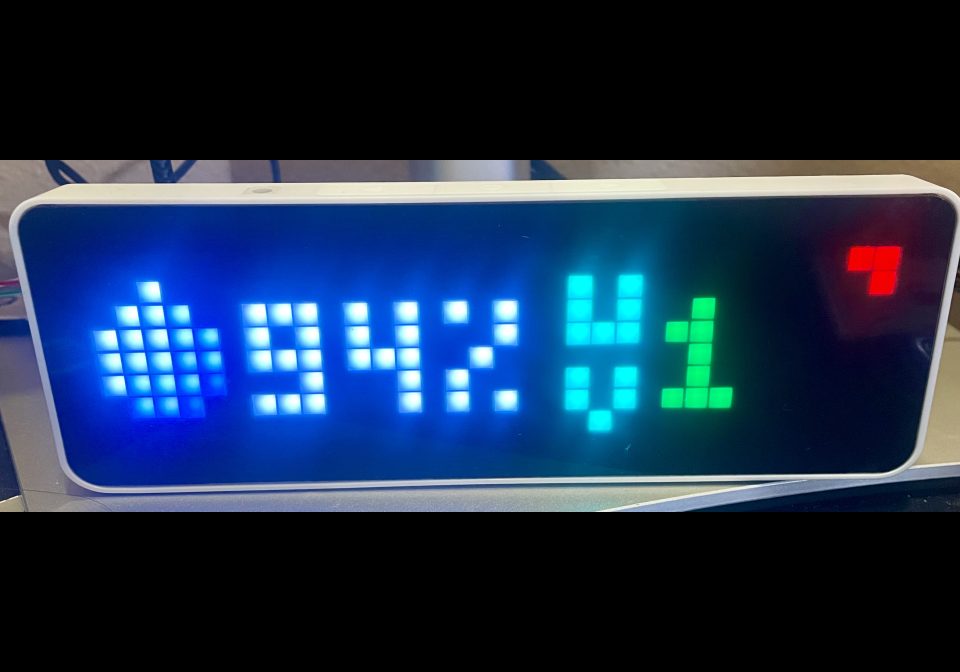

UV Index & Humidity

Flow description

---
blueprint:
  name: AWTRIX UV☀️ Humidity💧️
  description: >
    Display both a humidity value and the UV index on the awtrix.
  domain: automation
  input:
    awtrix:
      name: AWTRIX Device
      description: Select the Awtrix light
      selector:
        device:
          integration: mqtt
          manufacturer: Blueforcer
          model: AWTRIX Light
          multiple: false
    hum:
      name: Humidity Sensor
      description: A sesnor that provides a humidity value
      selector:
        entity:
    uv:
      name: UV Index
      description: A sesnor that provides a uv index
      selector:
        entity:

mode: restart
variables:
  device_id: !input awtrix
  awtrix: "{{ iif( device_attr(device_id, 'name_by_user') != none, device_attr(device_id, 'name_by_user'), device_attr(device_id, 'name') ) }}"
  message_topic: "{{awtrix ~ '/custom/hum'}}"
  notification_topic: "{{awtrix ~ '/notify' }}"
  payload: >-
    {% set uv = states('sensor.weatherflow_uv_index') | round %}
    {% set hum = states('sensor.weatherflow_relative_humidity') %}


    {%- if uv|float >= 10-%}
      {%- set uv_offset = "23,2" -%}
    {%- else %}
      {%- set uv_offset = "23,2" -%}
    {%- endif %}


    {%- macro get_uv_color(index) -%} {%- if index | float > 10 -%}
    #582FBD
    {%- elif index | float >= 8 -%}
    #CD0010
    {%- elif index | float >= 6 -%}
    #F44208
    {%- elif index | float >= 3 -%}
    #F5E10A
    {%- else -%}
    #248703
    {%- endif -%}
    {%- endmacro -%}

    {% set uv_color = get_uv_color(uv) %}

    {% macro draw_uv() %}
    {"dt":[{{uv_offset}},"{{uv}}","{{uv_color}}"]}
    {% endmacro %}

    {%- macro draw_u(x,y,color) -%}
    {"dl":[{{x}},{{y}},{{x}},{{y+2}},"{{color}}"]},
    {"dl":[{{x}},{{y+2}},{{x+2}},{{y+2}},"{{color}}"]},
    {"dl":[{{x+2}},{{y}},{{x+2}},{{y+2}},"{{color}}"]}
    {%- endmacro -%}

    {%- macro draw_v(x,y,color) -%}
    {"dl":[{{x}},{{y}},{{x+1}},{{y+2}},"{{color}}"]},
    {"dl":[{{x+2}},{{y}},{{x+1}},{{y+2}},"{{color}}"]}
    {%- endmacro -%}



    {
      "draw": [
        {"db":[0,1,8,8,[0,0,61279,0,0,0,0,0,0,65535,59199,50751,0,0,0,0,65535,61279,59199,50751,44383,0,0,0,61279,59199,59199,44383,44383,0,0,0,61279,50751,50751,44383,31737,0,0,0,0,44383,44383,31737,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0]]},
        {"dt":[6,2,"{{hum}}%"]},
        {{draw_u(19,1,"#00ffaa")}},
        {{draw_v(19,5,"#00ffaa")}},

        {{draw_uv()}}
      ]
    }

trigger:
  - platform: time_pattern
    seconds: /5

condition: []
action:
  - service: mqtt.publish
    data:
      qos: 0
      topic: "{{message_topic}}"
      payload: >
        {{payload}}
