Power usage

Shows the power consumption of a smart meter.

Home Assistant AWTRIX 3

About this flow

Specifications
System	Home Assistant
AWTRIX version	AWTRIX 3
Topic	Smarthome
Built by	wildekek
File	XBJpAq0k5rzw.yaml · 0.6 KB
Icons	—
Published	7 Oct 2024
Downloads	61

Is this your flow?

If you created this flow, open your saved edit link to add it to your account. You can then manage it whenever you sign in. Adding it to your account replaces the edit link.

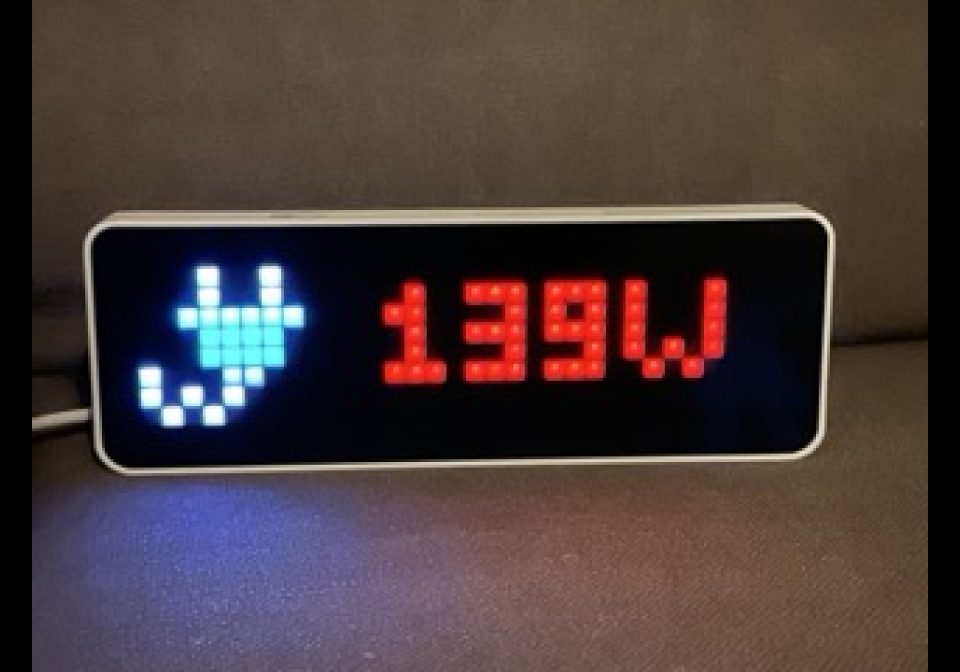

This app reads a smart meter (or other power sensor) and shows it on the display. The template converts kW to W get rid of decimals and save space, but is easy to change.
Requires LaMetric icon ID 44432 to be uploaded.

XBJpAq0k5rzw.yaml

alias: Send Power Usage to Awtrix
description: ""
triggers:
  - trigger: time_pattern
    seconds: "0"
  - trigger: state
    entity_id:
      - sensor.power_consumed
    enabled: false
conditions: []
actions:
  - action: mqtt.publish
    metadata: {}
    data:
      qos: "0"
      topic: awtrix_2fc2a8/custom/power
      payload: |-
        {
          "text": "{{ (states("sensor.power_consumed") | float * 1000) | round | int }}W",
          "textCase": 2,
          "color": [255,0,0],
          "icon": "44432",
          "noScroll": true
        }
      evaluate_payload: false
mode: single
