Pihole Status

Flow description

# @name    Pihole

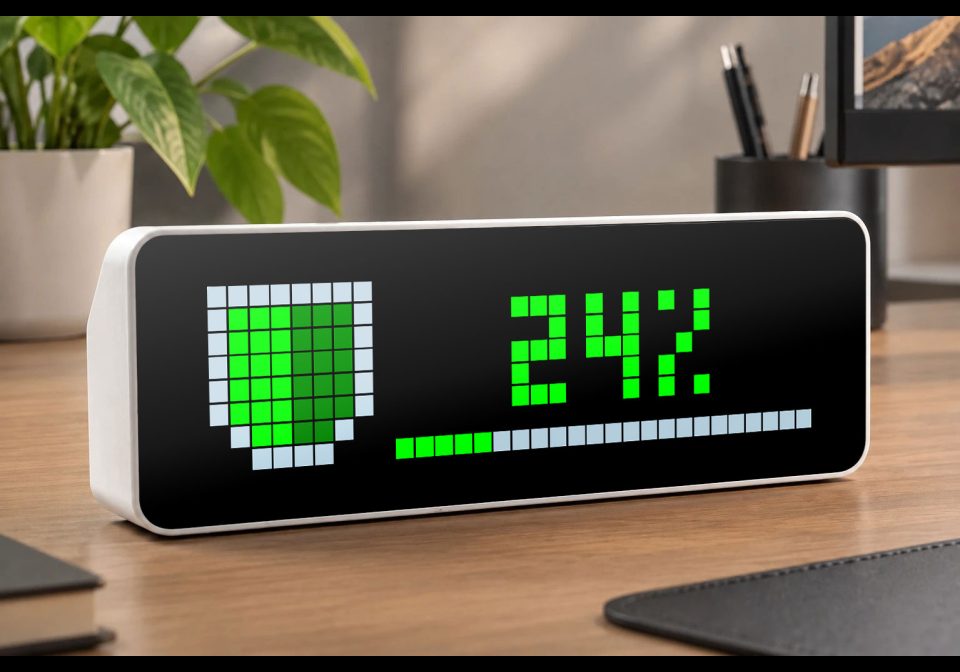

# @desc    Pi-hole status, block rate and countdown
# @author  Pascal
# @version 1.7
# @config  host   text   "Pi-hole address"   default="pi.hole" maxlen=48 help="IP or hostname, no trailing slash"
# @config  pass   text   "App password"      default="" maxlen=64 help="Leave empty if no password is set"
# @config  every  number "Poll interval"     default=30 min=5 max=600 unit=s
# @config  mode   select "Show app"          default=always options=always,disabled,problem help="disabled = only while blocking is off, problem = also on connection errors"
# @config  show   select "Text"              default=auto options=auto,status,percent,countdown
# @config  bar    select "Bar"               default=auto options=off,percent,countdown,auto
# @config  ind    select "Indicator"         default=off options=off,1,2,3
# @config  itgt   text   "Indicator target"  default="awtrixNG" maxlen=48 help="MQTT prefix, or http://IP of the AWTRIX"
# @config  cOn    color  "Active"            default=#00FF00
# @config  cOff   color  "Disabled"          default=#FF0000
# @config  cErr   color  "Unreachable"       default=#FFAA00
# @config  cLine  color  "Shield outline"    default=#B7D0DF help="also the track of the progress bar"

class Pihole
  var url, per, md, sm, bm        # from the settings, resolved once in init()
  var ind, itg, ihttp             # indicator: number, target, HTTP instead of MQTT
  var c1, c2, c3, c4              # colors active / disabled / error / outline
  var sid                         # Pi-hole session, nil = none
  var st                          # nil unknown, 0 error, 1 active, 2 disabled
  var pct, left, tmax             # block rate %, seconds left, timer start value
  var lbl, ticks, busy, last, iw

  def init()
    var h = store.get("host")
    if h == nil h = "pi.hole" end
    if re.search("^https?://", h) == nil h = "http://" + h end
    self.url = h
    self.per = store.get("every")
    self.md = store.get("mode")
    self.sm = store.get("show")
    self.bm = store.get("bar")
    self.ind = store.get("ind")
    var t = store.get("itgt")
    if t == nil t = "" end
    self.itg = t
    self.ihttp = re.search("^https?://", t) != nil
    self.c1 = store.get("cOn")
    self.c2 = store.get("cOff")
    self.c3 = store.get("cErr")
    self.c4 = store.get("cLine")
    self.sid = nil
    self.st = nil
    self.pct = nil
    self.left = nil
    self.tmax = nil
    self.lbl = nil
    self.ticks = 0
    self.busy = 0
    self.last = nil
    self.iw = 0
  end

  def got(k, b, s)
    self.busy -= 1
    if k == 0                                    # reply from /api/auth
      self.busy = 0
      var a = b == nil ? nil : re.search("\"sid\":\"([^\"]+)\"", b)
      if a == nil
        self.st = 0
      else
        self.sid = a[1]
        self.ticks = 0                           # fetch data right away
      end
      return
    end
    if b == nil                                  # nothing arrived, or field missing
      if s == 401 self.sid = nil end             # session expired -> log in again
      if k == 1 self.st = 0 end
      return
    end
    if k == 2                                    # block rate in percent
      var q = re.search(":\\s*([0-9.]+)", b)
      if q != nil self.pct = round(num(q[1])) end
      return
    end
    var m = re.search("\"blocking\":\"(\\w+)\"", b)
    if m == nil
      self.st = 0
      return
    end
    if m[1] == "enabled"
      self.st = 1
      self.left = nil
      self.tmax = nil
    else
      self.st = 2
      m = re.search("\"timer\":([0-9.]+)", b)    # null = disabled indefinitely
      if m == nil
        self.left = nil
        self.tmax = nil
      else
        self.left = int(num(m[1]))
        if self.tmax == nil || self.left > self.tmax self.tmax = self.left end
      end
    end
  end

  def loop()
    if self.ticks <= 0
      self.ticks = self.per
      if self.busy <= 0
        var p = store.get("pass")
        if self.sid == nil && p != nil && size(p) > 0
          self.busy = 1
          http.post(self.url + "/api/auth", "{\"password\":\"" + p + "\"}",
                    / b, s -> self.got(0, b, s),
                    {'headers': {'Content-Type': "application/json"}, 'find': "\"sid\"", 'keep': 72})
        else
          self.busy = 2
          var o = {'find': "\"blocking\"", 'keep': 64}
          if self.sid != nil o['headers'] = {'X-FTL-SID': self.sid} end
          http.get(self.url + "/api/dns/blocking", / b, s -> self.got(1, b, s), o)
          o = {'find': "\"percent_blocked\"", 'keep': 40}
          if self.sid != nil o['headers'] = {'X-FTL-SID': self.sid} end
          http.get(self.url + "/api/stats/summary", / b, s -> self.got(2, b, s), o)
        end
      end
    end
    self.ticks -= 1

    if self.st == 2 && self.left != nil && self.left > 0    # keep the countdown running locally
      self.left -= 1
    end

    var v = self.sm
    if v == "auto"
      v = self.st == 2 && self.left != nil ? "countdown" : "percent"
    end
    if self.st == nil
      self.lbl = nil
    elif self.st == 0
      self.lbl = "ERR"
    elif v == "countdown" && self.left != nil
      var mm = self.left / 60
      var ss = self.left % 60
      self.lbl = (mm < 10 ? "0" : "") + str(mm) + ":" + (ss < 10 ? "0" : "") + str(ss)
    elif v == "percent" && self.pct != nil
      self.lbl = str(self.pct) + "%"
    else
      self.lbl = self.st == 2 ? "OFF" : "ON"
    end

    self.iw -= 1
    if self.st != self.last || self.iw <= 0     # indicator: on change, otherwise every 10 min
      if self.st != nil && self.ind != "off"
        var c = self.st == 1 ? self.c1 : (self.st == 2 ? self.c2 : self.c3)
        var bd = "{\"color\":" + str(c) + ",\"blinkMs\":" + (self.st == 1 ? "0" : "800") + "}"
        if self.ihttp
          http.put(self.itg + "/api/v1/indicators/" + self.ind, bd, / b, s -> b,
                   {'headers': {'Content-Type': "application/json"}})
        else
          mqtt.publish(self.itg + "/cmd/indicators/" + self.ind, bd)
        end
      end
      self.iw = 600
      self.last = self.st
    end
  end

  def should_show()
    if self.md == "always" return true end
    if self.st == nil return false end          # no reply yet, nothing to say
    if self.md == "problem" return self.st != 1 end
    return self.st == 2
  end

  def draw()
    clear()
    var c = self.st == 1 ? self.c1 : (self.st == 2 ? self.c2 : self.c3)
    var d = (c & 0xFEFEFE) >> 1                 # half brightness for the right half
    var b = self.bm
    if b == "auto"
      b = self.st == 2 && self.tmax != nil ? "countdown" : "percent"
    end
    var p = -1
    if b == "countdown" && self.left != nil && self.tmax != nil && self.tmax > 0
      p = clamp(self.left * 100 / self.tmax, 0, 100)
    elif b == "percent" && self.pct != nil
      p = clamp(self.pct, 0, 100)
    end
    if p >= 0                                   # bar spans the text area only
      var bw = width() - 9
      rect_fill(9, 7, bw, 1, self.c4)           # track in the outline color
      rect_fill(9, 7, bw * p / 100, 1, c)
    end
    if self.lbl == nil
      text(10, 6, "...", 0x666666)
    else
      text(9 + (width() - 9 - text_ink_width(self.lbl)) / 2, 6, self.lbl, c)
    end
    rect_fill(1, 1, 3, 5, c)                    # fill, left half
    rect_fill(4, 1, 3, 5, d)                    # fill, right half
    rect_fill(2, 6, 2, 1, c)
    rect_fill(4, 6, 2, 1, d)
    var o = self.c4
    line(0, 0, 7, 0, o)                         # top edge
    line(0, 1, 0, 5, o)                         # left flank
    line(7, 1, 7, 5, o)                         # right flank
    pixel(1, 6, o)                              # chamfers
    pixel(6, 6, o)
    line(2, 7, 5, 7, o)                         # bottom edge
  end

  def on_button(btn)
    if btn == "select" self.ticks = 0 end
  end
end

return Pihole()
