FlowAWTRIX NG

Pixel Doom

by Galadril 17 Sep 2026

On your display

Can it run DOOM? Well… your AWTRIX NG can now run a tiny 32×8 pixel shooter. 😈

Works with: AWTRIX NG
Topic: Gaming
Includes: Script

Choose your display in the next step.

↓ Download script

Send to AWTRIX

Choose your AWTRIX

Pixel DoomAWTRIX NG script

Install this script on your AWTRIX NG. Icons listed in its @icons line are installed automatically.

IP address or hostname

Your AWTRIX’s local address, for example 192.168.178.39 or awtrix.local.

Script name

The name shown in your AWTRIX script list. Use letters, digits, hyphens or underscores.

Connection & device login

Connect your phone or computer to the same network as your AWTRIX. Allow local network access if your browser asks.

Use the device’s IP address or hostname, without a page path such as /#/apps.

If your AWTRIX requires a login, the username and password fields will appear when you connect.

Unable to connect? Download the script and add it in the Scripts section of your AWTRIX.

Command line

The ultimate question for any piece of hardware: Can it run DOOM?

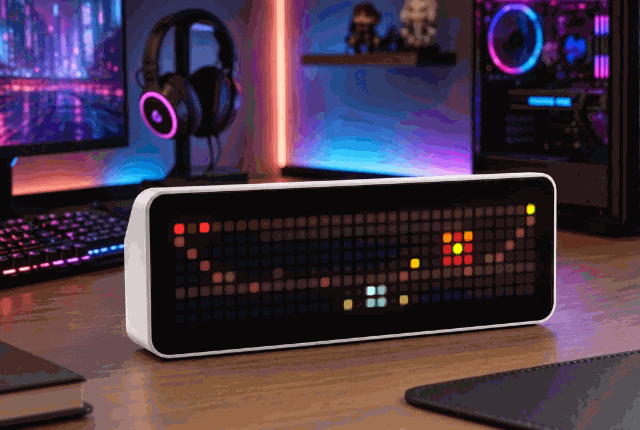

Pixel Doom brings a tiny DOOM-inspired first-person shooter to the 32×8 pixel display of AWTRIX NG.

Fight your way through a dark pseudo-3D corridor while enemies emerge from the distance and get larger as they approach. Move between lanes, line up your weapon and fire before they reach you.

Despite having only 256 pixels, Pixel Doom is an actual playable game rather than a simple animation.

Features
🔫 Playable first-person pixel shooter
👹 Enemies approach from the distance
🏃 Move left and right to line up your shots
💥 Animated muzzle flashes
🔥 Enemy fireballs
❤️ Three-hit health system
☠️ Game-over screen
🏆 Kill counter
⚡ Difficulty increases as your kill count rises
🕹️ Runs entirely as an AWTRIX NG Berry script
📡 No server or external API required
Controls

LEFT — Move left
RIGHT — Move right
SELECT — Fire

After dying, press SELECT to start a new game.

Can it run DOOM?

Not actual DOOM. 😉

Pixel Doom uses procedural pixel graphics and a lightweight pseudo-3D perspective designed specifically around the extreme limitations of a 32×8 LED matrix.

But when someone sees a first-person demon shooter running on your pixel clock, there's really only one appropriate answer:

Yes. Yes, it can. 😈🔫

PPgJxV9vVReH.ax

# @name Pixel Doom
# @desc Tiny 32x8 pseudo-3D demon shooter
# @version 1.0

class PixelDoom

 var px,hp,kills,enemy,ex,depth,shot,flash
 var fire,last,spawn,seed,dead

 def init()
  self.seed=now_ms()+666
  self.start()
 end

 def start()
  self.px=1
  self.hp=3
  self.kills=0
  self.enemy=false
  self.depth=5
  self.shot=0
  self.flash=0
  self.fire=0
  self.last=now_ms()
  self.spawn=now_ms()
  self.dead=false
 end

 def rnd(n)
  self.seed=(self.seed*1103515245+12345)%2147483647
  if self.seed<0 self.seed=-self.seed end
  return self.seed%n
 end


 # =====================================
 # CONTROLS
 # =====================================

 def on_button(b)

  if self.dead
   if b=="select"
    self.start()
   end
   return
  end

  if b=="left"
   if self.px>0 self.px-=1 end

  elif b=="right"
   if self.px<2 self.px+=1 end

  elif b=="select"
   self.shot=3

   if self.enemy && self.ex==self.px
    self.enemy=false
    self.kills+=1
    self.flash=2
    self.spawn=now_ms()
   end
  end

 end


 # =====================================
 # GAME UPDATE
 # =====================================

 def update()

  var n=now_ms()

  if self.shot>0 self.shot-=1 end
  if self.flash>0 self.flash-=1 end
  if self.fire>0 self.fire-=1 end

  if self.dead
   return
  end


  # spawn enemy
  if !self.enemy && n-self.spawn>900+self.rnd(1000)

   self.enemy=true
   self.ex=self.rnd(3)
   self.depth=5

  end


  # game speed increases with kills
  var speed=700-self.kills*18
  if speed<260 speed=260 end

  if n-self.last<speed
   return
  end

  self.last=n


  if self.enemy

   self.depth-=1

   # enemy attacks when close
   if self.depth==2 && self.rnd(2)==0
    self.fire=3
   end

   # enemy reaches player
   if self.depth<=0

    if self.ex==self.px

     self.hp-=1
     self.flash=4

     if self.hp<=0
      self.dead=true
      return
     end

    end

    self.enemy=false
    self.spawn=n

   end

  end

 end


 # =====================================
 # CORRIDOR
 # =====================================

 def room()

  # damage flash
  if self.flash>2
   clear(0x350000)
  else
   clear(0x03050A)
  end


  # perspective walls

  pixel(0,1,0x702020)
  pixel(31,1,0x702020)

  pixel(1,2,0x702020)
  pixel(30,2,0x702020)

  pixel(2,3,0x702020)
  pixel(29,3,0x702020)

  pixel(3,4,0x702020)
  pixel(28,4,0x702020)


  # ceiling perspective

  line(0,0,31,0,0x301010)

  line(7,1,24,1,0x201010)


  # floor

  line(0,5,31,5,0x301515)

  pixel(4,4,0x502020)
  pixel(27,4,0x502020)

  pixel(8,4,0x301515)
  pixel(23,4,0x301515)


  # floor perspective markers

  pixel(6,5,0x702020)
  pixel(12,5,0x702020)
  pixel(19,5,0x702020)
  pixel(25,5,0x702020)

 end


 # =====================================
 # ENEMY
 # =====================================

 def monster()

  if !self.enemy
   return
  end

  # three lanes
  var x=8+self.ex*8


  # far
  if self.depth>=5

   pixel(x,3,0xFF2020)


  # distance 4
  elif self.depth==4

   pixel(x,3,0xFF2020)
   pixel(x,4,0x8B0000)


  # distance 3
  elif self.depth==3

   pixel(x-1,3,0xAA1010)
   pixel(x,3,0xFF3030)
   pixel(x+1,3,0xAA1010)

   pixel(x,4,0x8B0000)


  # distance 2
  elif self.depth==2

   rect_fill(x-1,2,3,3,0xA51010)

   pixel(x-1,2,0xFF5500)
   pixel(x+1,2,0xFF5500)

   pixel(x,3,0xFFFF00)


  # distance 1
  else

   rect_fill(x-2,1,5,4,0x8B1010)

   # horns
   pixel(x-2,0,0xFF5500)
   pixel(x+2,0,0xFF5500)

   # eyes
   pixel(x-1,2,0xFFFF00)
   pixel(x+1,2,0xFFFF00)

   # mouth
   pixel(x,3,0x000000)

  end

 end


 # =====================================
 # ENEMY FIREBALL
 # =====================================

 def fireball()

  if self.fire==0
   return
  end

  var x=8+self.ex*8

  if self.fire==3
   pixel(x,4,0xFF4000)

  elif self.fire==2
   pixel((x+16)/2,4,0xFF8000)

  else
   pixel(12+self.px*4,5,0xFFFF00)
  end

 end


 # =====================================
 # WEAPON
 # =====================================

 def gun()

  var x=12+self.px*4

  # hands
  pixel(x-2,7,0xB06030)
  pixel(x+3,7,0xB06030)

  # gun
  rect_fill(x,6,2,2,0x777777)

  pixel(x,6,0xAAAAAA)


  # muzzle flash
  if self.shot>0

   pixel(x,5,0xFFFFFF)
   pixel(x-1,5,0xFFFF00)
   pixel(x+1,5,0xFF8000)

   if self.shot==3
    pixel(x,4,0xFFFF00)
   end

  end

 end


 # =====================================
 # HUD
 # =====================================

 def hud()

  # health - top left
  for i:0..self.hp-1
   pixel(i*2,0,0xFF2020)
  end

  # kills - top right
  var k=self.kills
  if k>5 k=5 end

  for i:0..k-1
   pixel(31-i,0,0xFFAA00)
  end

 end


 # =====================================
 # GAME OVER
 # =====================================

 def gameover()

  clear(0x100000)

  text(0,6,"DEAD",0xFF2020)

  # alternating score
  if (now_ms()/1800)%2==1
   clear(0x050000)
   text(1,6,str(self.kills),0xFFFFFF)
  end

 end


 # =====================================
 # DRAW
 # =====================================

 def draw()

  self.update()

  if self.dead
   self.gameover()
   return
  end

  self.room()
  self.monster()
  self.fireball()
  self.gun()
  self.hud()

 end

end

return PixelDoom()

About this flow

Specifications
System	AWTRIX NG Scripts
AWTRIX version	AWTRIX NG
Topic	Gaming
Built by	Galadril
File	PPgJxV9vVReH.ax · 5.4 KB
Icons	—
Published	17 Sep 2026 · updated 17 Sep 2026
