FlowAWTRIX 3

Self-stats

by TNC31 Dec 2023
On an AWTRIX display

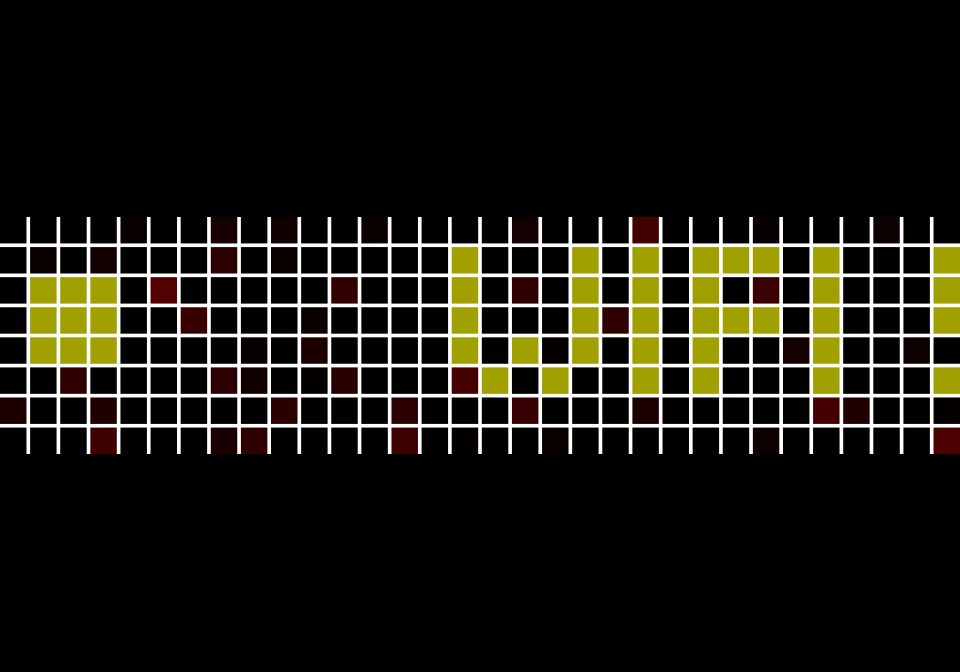

Self-stats shown on an AWTRIX display
Self-stats · by TNC

Use with Home Assistant

Take the Awtrix outside and let it show you how good your WiFi reception is and how long the battery lasts. Helpful if you have a doorbell or other sensors connected to it. To make it work, just replace XXXXXX with your Awtrix. You have to do this in 6 p

Which AWTRIX do you have? See below where it runs, or choose your device.
Topic
Smarthome
Includes
Flow

Runs on

  • Does not run on 32×8 (TC001 & DIY) Made for AWTRIX 3.
  • Does not run on 52×16 (TC002) Made for AWTRIX 3.
  • Runs on 32×8 with AWTRIX 3 (TC001 & DIY)
Download flow

Follow the author’s setup instructions below.

Open automations ↗
Is this your flow?

If you created this flow, open your saved edit link to add it to your account. You can then manage it whenever you sign in. Adding it to your account replaces the edit link.

Flow description

Take the Awtrix outside and let it show you how good your WiFi reception is and how long the battery lasts. Helpful if you have a doorbell or other live sensors connected to it.

The App is Updating every Minute... No Assets needed...

To make it work, just replace XXXXXX with your Awtrix. You have to do this in 6 places.
Enjoy.
Go out your door or into your garden and have fun with it. May the wifi be strong enough for you.
Signal Strength Identifier Appropriate Uses
-30 dBm Excellent This is the maximum achievable signal strength suitable for every application scenario.
-50 dBm Excellent This excellent signal level is suitable for all network applications.
-65 dBm Very good Recommended for supporting smartphones and tablets.
-68 dBm Very good This signal strength is sufficient for voice over IP and video streaming.
-70 dBm Acceptable This level is the minimum signal strength required to ensure reliable packet delivery and enables Internet surfing and email exchange.
-80 dBm Poor Allows basic connectivity, but packet delivery is unreliable.
-90 dBm Very Poor Mostly noise, confuses most functions.
-100 dBm Worst case Just noise.
