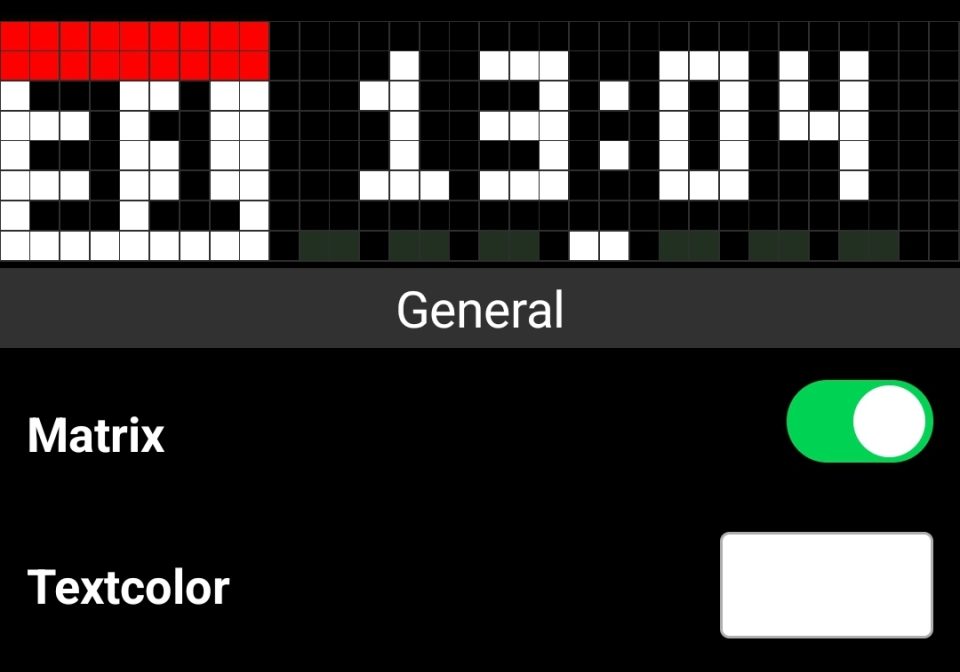

Display Power Schedule

Flow description

[
    {
        "id": "5a03cbe9a6459077",
        "type": "tab",
        "label": "LED Matrix display schedule",
        "disabled": false,
        "info": "",
        "env": []
    },
    {
        "id": "f242dc6511e99976",
        "type": "chronos-scheduler",
        "z": "5a03cbe9a6459077",
        "name": "Schedule power",
        "config": "db14326cf702f85d",
        "schedule": [
            {
                "trigger": {
                    "type": "time",
                    "value": "1:00",
                    "offset": 0,
                    "random": false
                },
                "output": {
                    "type": "msg",
                    "property": {
                        "name": "power",
                        "type": "str",
                        "value": "OFF"
                    }
                }
            },
            {
                "trigger": {
                    "type": "time",
                    "value": "6:00",
                    "offset": 0,
                    "random": false
                },
                "output": {
                    "type": "msg",
                    "property": {
                        "name": "power",
                        "type": "str",
                        "value": "ON"
                    }
                }
            }
        ],
        "multiPort": false,
        "nextEventPort": false,
        "disabled": false,
        "outputs": 1,
        "x": 240,
        "y": 340,
        "wires": [
            [
                "771866a7baea7fb5"
            ]
        ]
    },
    {
        "id": "771866a7baea7fb5",
        "type": "function",
        "z": "5a03cbe9a6459077",
        "name": "Dispaly ON/OFF function",
        "func": "var prefix = flow.get(\"prefix\");\nmsg.topic = prefix+ \"/power\";\nvar value = '';\n\nif (msg.power === \"ON\"){\nvalue = 1;\n}else if (msg.power === \"OFF\"){\nvalue = 0;\n}\n\nmsg.payload = { \"power\": value };\n\nnode.status({ fill: 'green', shape: 'ring', text: msg.power});\n\nreturn msg;\n\n\n\n\n",
        "outputs": 1,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "libs": [],
        "x": 550,
        "y": 260,
        "wires": [
            [
                "1460c777a74257e0"
            ]
        ]
    },
    {
        "id": "ba9e45f34b558fb1",
        "type": "inject",
        "z": "5a03cbe9a6459077",
        "name": "Display ON",
        "props": [
            {
                "p": "power",
                "v": "ON",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": "1",
        "topic": "",
        "x": 250,
        "y": 220,
        "wires": [
            [
                "771866a7baea7fb5"
            ]
        ]
    },
    {
        "id": "59258bca80221ddf",
        "type": "inject",
        "z": "5a03cbe9a6459077",
        "name": "Display OFF",
        "props": [
            {
                "p": "power",
                "v": "OFF",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": "1",
        "topic": "",
        "x": 250,
        "y": 280,
        "wires": [
            [
                "771866a7baea7fb5"
            ]
        ]
    },
    {
        "id": "1460c777a74257e0",
        "type": "mqtt out",
        "z": "5a03cbe9a6459077",
        "name": "",
        "topic": "",
        "qos": "",
        "retain": "",
        "respTopic": "",
        "contentType": "",
        "userProps": "",
        "correl": "",
        "expiry": "",
        "broker": "7ab578ded1bbee4f",
        "x": 770,
        "y": 260,
        "wires": []
    },
    {
        "id": "11459bd9b3dd2d37",
        "type": "change",
        "z": "5a03cbe9a6459077",
        "name": "SET vars",
        "rules": [
            {
                "t": "set",
                "p": "prefix",
                "pt": "flow",
                "to": "awtrix",
                "tot": "str"
            }
        ],
        "action": "",
        "property": "",
        "from": "",
        "to": "",
        "reg": false,
        "x": 400,
        "y": 120,
        "wires": [
            []
        ]
    },
    {
        "id": "b47441db0275aa0d",
        "type": "inject",
        "z": "5a03cbe9a6459077",
        "name": "Start",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": true,
        "onceDelay": "1",
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 230,
        "y": 120,
        "wires": [
            [
                "11459bd9b3dd2d37"
            ]
        ]
    },
    {
        "id": "db14326cf702f85d",
        "type": "chronos-config",
        "name": "local",
        "timezone": "",
        "sunPositions": []
    },
    {
        "id": "7ab578ded1bbee4f",
        "type": "mqtt-broker",
        "name": "localhost",
        "broker": "localhost",
        "port": "1883",
        "clientid": "",
        "autoConnect": true,
        "usetls": false,
        "protocolVersion": "4",
        "keepalive": "60",
        "cleansession": true,
        "birthTopic": "",
        "birthQos": "0",
        "birthPayload": "",
        "birthMsg": {},
        "closeTopic": "",
        "closeQos": "0",
        "closePayload": "",
        "closeMsg": {},
        "willTopic": "",
        "willQos": "0",
        "willPayload": "",
        "willMsg": {},
        "sessionExpiry": ""
    }
]
