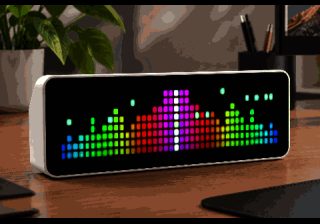

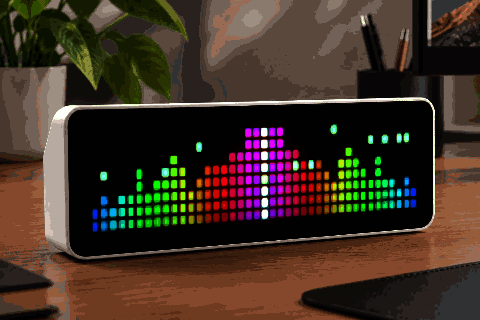

Disco Visualization

Flow description

# @name Disco
# @desc Mirrored rainbow spectrum with a bass column and beat confetti
# @author AWTRIX NG
# @version 1.1
# @config spin slider "Rainbow speed" default=100 min=0 max=400 unit=%
# @config decay number "Bar fall time" default=300 min=100 max=2000 unit=ms
# @config bass bool "White bass column" default=true
# @config confetti bool "Beat confetti" default=true
import math

class Disco
  var n          # bars per side
  var level      # smoothed level per bar, 0..255
  var hue        # rainbow offset, drifts and jumps on the beat
  var last       # previous frame, ms
  var sparks     # confetti: [x, y, born]
  var spin       # rainbow drift, %
  var decay
  var bass
  var confetti

  def init()
    self.n = width() / 2
    if self.n > 32 self.n = 32 end
    self.level = []
    for i: 0..self.n - 1
      self.level.push(0)
    end
    self.hue = 0
    self.last = 0
    self.sparks = []
    self.spin = store.get("spin")
    self.decay = store.get("decay")
    self.bass = store.get("bass")
    self.confetti = store.get("confetti")
  end

  def should_show()
    return music.playing()
  end

  def draw()
    var now = now_ms()
    var dt = self.last > 0 ? now - self.last : 0
    if dt > 100 dt = 100 end
    self.last = now
    var fall = dt * 255 / self.decay
    var bands = music.bands(self.n, 255)
    var beat = music.beat()
    var h = height()
    var cx = width() / 2

    self.hue = (self.hue + dt * self.spin / 2500) % 360
    if beat
      self.hue = (self.hue + 90) % 360
      if self.confetti
        for k: 0..5
          self.sparks.push([math.rand() % width(), math.rand() % 2, now])
        end
      end
    end

    # Bass in the middle, treble at both edges, the rainbow wrapped over the bars.
    for i: 0..self.n - 1
      var lv = self.level[i] - fall
      if bands[i] > lv lv = bands[i] end
      if lv < 0 lv = 0 end
      self.level[i] = lv
      var bar = (lv * lv / 255 * h + 127) / 255
      var hue = (self.hue + i * 300 / self.n) % 360
      for y: 0..bar - 1
        var c = hsv(hue, 100, 60 + y * 5)
        pixel(cx - 1 - i, h - 1 - y, c)
        pixel(cx + 1 + i, h - 1 - y, c)
      end
    end

    if self.bass
      var bass = (self.level[0] * h + 127) / 255
      for y: 0..bass - 1
        pixel(cx, h - 1 - y, 0xFFFFFF)
      end
    end

    # Confetti drops one row every 120 ms and is gone after 600 ms.
    var keep = []
    for s: self.sparks
      var age = now - s[2]
      if age < 600
        var y = s[1] + age / 120
        if y < h pixel(s[0], y, hsv((self.hue + 180) % 360, 40, 100)) end
        keep.push(s)
      end
    end
    self.sparks = keep
  end
end

return Disco()
