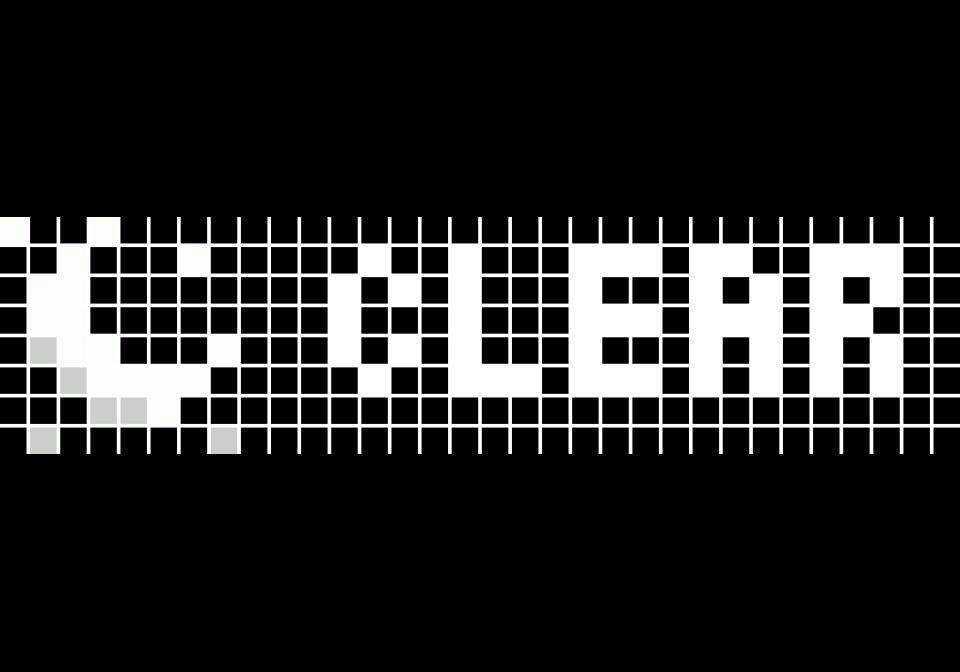

![[US] Weather from api.weather.gov shown on an AWTRIX display](/storage/covers/DY93AWG4AQ0y/cover-960.jpg)
Is this your flow?
If you created this flow, open your saved edit link to add it to your account. You can then manage it whenever you sign in. Adding it to your account replaces the edit link.
Flow description
- Upload the icons to your Awtrix.
There 2 configuration nodes:
- First, set your desired latitude and longitude in second configuration node, run it once, you will see output from console panel telling you the WFO and gridX, gridY you need.
- Second given the above information, change the first configuration node to match your desired settings.
- You may ignore authorization_header if no credentials are needed.
DY93AWG4AQ0y.json
[
{
"id": "7efaf915ca5b7337",
"type": "tab",
"label": "Awtrix weather by api.weather.gov",
"disabled": false,
"info": "",
"env": []
},
{
"id": "97e239f3b23160ca",
"type": "group",
"z": "7efaf915ca5b7337",
"name": "Awtrix weather by api.weather.gov",
"style": {
"label": true
},
"nodes": [
"514be84e6537b208",
"a89bf6bc9b4ee6cd",
"43c8034f31d87da1",
"c3731eefae02dcb4",
"ef31a5c5cd4dbcfc",
"82f57ae3116cc75d",
"0654e5b8038248e8",
"d5cf1dbca661bcb3",
"515b12b72d5e63dc",
"8c1e5672f66cc334",
"52931d15a219febb",
"eb9f1cfe4f036184",
"7071c05bfb9d9ac7",
"97fb33089ff4fd73",
"ece47f29798a9a1f",
"eae9209dd318913e",
"9e4bcd38a1a73d39",
"95f76795e13faa31",
"6824085062f5947f",
"2ea88619e5304433",
"a849b46631023e92",
"b7d85c4da0f239fb"
],
"x": 214,
"y": 119,
"w": 2092,
"h": 482
},
{
"id": "514be84e6537b208",
"type": "http request",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "make weather request",
"method": "GET",
"ret": "obj",
"paytoqs": "ignore",
"url": "",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": true,
"headers": [],
"x": 1000,
"y": 200,
"wires": [
[
"43c8034f31d87da1",
"515b12b72d5e63dc"
]
]
},
{
"id": "a89bf6bc9b4ee6cd",
"type": "inject",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "check",
"props": [
{
"p": "payload"
}
],
"repeat": "900",
"crontab": "",
"once": true,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 330,
"y": 200,
"wires": [
[
"d5cf1dbca661bcb3"
]
]
},
{
"id": "43c8034f31d87da1",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "debug weather response",
"active": false,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 1250,
"y": 380,
"wires": []
},
{
"id": "c3731eefae02dcb4",
"type": "change",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "generate weather request",
"rules": [
{
"t": "set",
"p": "url",
"pt": "msg",
"to": "https://api.weather.gov/gridpoints/{wfo}/{x,y}/forecast/hourly",
"tot": "str"
},
{
"t": "change",
"p": "url",
"pt": "msg",
"from": "{wfo}",
"fromt": "str",
"to": "wfo",
"tot": "flow"
},
{
"t": "change",
"p": "url",
"pt": "msg",
"from": "{x,y}",
"fromt": "str",
"to": "x,y",
"tot": "flow"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 750,
"y": 200,
"wires": [
[
"514be84e6537b208"
]
]
},
{
"id": "ef31a5c5cd4dbcfc",
"type": "catch",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "",
"scope": null,
"uncaught": false,
"x": 580,
"y": 560,
"wires": [
[
"82f57ae3116cc75d"
]
]
},
{
"id": "82f57ae3116cc75d",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "debug errors",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 790,
"y": 560,
"wires": []
},
{
"id": "0654e5b8038248e8",
"type": "comment",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "Change configuration in this node",
"info": "",
"x": 540,
"y": 160,
"wires": []
},
{
"id": "d5cf1dbca661bcb3",
"type": "change",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "configuration",
"rules": [
{
"t": "set",
"p": "wfo",
"pt": "flow",
"to": "OKX",
"tot": "str"
},
{
"t": "set",
"p": "x,y",
"pt": "flow",
"to": "36,36",
"tot": "str"
},
{
"t": "set",
"p": "use_fahrenheit",
"pt": "flow",
"to": "true",
"tot": "bool"
},
{
"t": "set",
"p": "awtrix_ip",
"pt": "flow",
"to": "192.168.1.101",
"tot": "str"
},
{
"t": "set",
"p": "awtrix_app_name",
"pt": "flow",
"to": "weather",
"tot": "str"
},
{
"t": "set",
"p": "authorization_header",
"pt": "flow",
"to": "Basic ZXhhbXBsZTpwYXNzd29yZA==",
"tot": "str"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 510,
"y": 200,
"wires": [
[
"c3731eefae02dcb4"
]
]
},
{
"id": "515b12b72d5e63dc",
"type": "function",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "frames generator",
"func": "const LIFETIME = '3600';\nconst PUSH_ICON = '0';\nconst REPEAT = '2';\nconst DURATION = '';\n// Look ahead 30 mins\nconst TIME_OFFSET_IN_MS = 30 * 60 * 1000;\nconst USE_FAHRENHEIT = flow.get('use_fahrenheit');\n\n// Match keyword case insensitive from top to bottom\n// Put \"cloudy\" before \"mostly cloudy\" will cause latter one never matches\nconst KEYWORD_TO_ICON_DICT = {\n 'storm': 'stormy',\n 'foggy': 'foggy',\n 'snow': 'snowy',\n 'rain': 'rainy',\n 'partly cloudy': 'partly_cloudy',\n 'cloudy': 'mostly_cloudy',\n 'clear': 'moon',\n 'sunny': 'sunny',\n '': 'weather_fallback',\n};\n\nconst createFrameWithTextAndIcon = (text, icon) => ({\n text,\n icon,\n lifetime: LIFETIME,\n pushIcon: PUSH_ICON,\n repeat: REPEAT,\n duration: DURATION,\n});\n\nconst mapShortForecastToIcon = (shortForecast) => {\n for (const keyword of Object.keys(KEYWORD_TO_ICON_DICT)) {\n if (shortForecast?.toLowerCase().includes(keyword?.toLowerCase())) {\n return KEYWORD_TO_ICON_DICT[keyword];\n }\n }\n};\n\nconst findPeriodNow = (periods, timeOffsetInMs = TIME_OFFSET_IN_MS) => {\n if (!Array.isArray(periods)) {\n throw new Error('periods should be array');\n }\n const timestampInEpoch = Date.now() + TIME_OFFSET_IN_MS;\n const found = periods.find(period => (new Date(period?.startTime)).valueOf() > timestampInEpoch);\n if (!found) {\n throw new Error(`unable to find period after ${timestampInEpoch}`);\n }\n return found;\n};\n\nconst FToC = (f, optionalDecimalPoints = 1) => Math.round((f - 32) * 5 / 9 * Math.pow(10, optionalDecimalPoints)) / Math.pow(10, optionalDecimalPoints);\n\nconst handleMessage = (message) => {\n const periods = message?.payload?.properties?.periods;\n if (!Array.isArray(periods)) {\n throw new Error('unable to parse msessage');\n }\n const frames = [];\n const currentPeriod = findPeriodNow(periods);\n const temperatureText = USE_FAHRENHEIT ? `${currentPeriod?.temperature}°F` : `${FToC(currentPeriod?.temperature)}°C`;\n frames.push(createFrameWithTextAndIcon(\n temperatureText,\n mapShortForecastToIcon(currentPeriod?.shortForecast),\n ));\n frames.push(createFrameWithTextAndIcon(\n currentPeriod?.shortForecast,\n mapShortForecastToIcon(currentPeriod?.shortForecast),\n ));\n frames.push(createFrameWithTextAndIcon(\n `${currentPeriod?.probabilityOfPrecipitation?.value}%`,\n 'umbrella',\n ));\n frames.push(createFrameWithTextAndIcon(\n // `${currentPeriod?.windSpeed} ${currentPeriod?.windDirection}`,\n currentPeriod?.windSpeed,\n 'wind',\n ));\n frames.push(createFrameWithTextAndIcon(\n `${currentPeriod?.relativeHumidity?.value}%`,\n 'humidity',\n ));\n message.payload.frames = frames;\n return message;\n};\n\nreturn handleMessage(msg);",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 1250,
"y": 200,
"wires": [
[
"8c1e5672f66cc334",
"52931d15a219febb"
]
]
},
{
"id": "8c1e5672f66cc334",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "debug frames generator",
"active": false,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 1530,
"y": 380,
"wires": []
},
{
"id": "52931d15a219febb",
"type": "change",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "generate awtrix request",
"rules": [
{
"t": "set",
"p": "method",
"pt": "msg",
"to": "POST",
"tot": "str"
},
{
"t": "set",
"p": "url",
"pt": "msg",
"to": "http://{awtrix_ip}/api/custom?name={awtrix_app_name}",
"tot": "str"
},
{
"t": "change",
"p": "url",
"pt": "msg",
"from": "{awtrix_ip}",
"fromt": "str",
"to": "awtrix_ip",
"tot": "flow"
},
{
"t": "change",
"p": "url",
"pt": "msg",
"from": "{awtrix_app_name}",
"fromt": "str",
"to": "awtrix_app_name",
"tot": "flow"
},
{
"t": "move",
"p": "headers",
"pt": "msg",
"to": "original_headers",
"tot": "msg"
},
{
"t": "move",
"p": "payload",
"pt": "msg",
"to": "original_payload",
"tot": "msg"
},
{
"t": "set",
"p": "headers.Authorization",
"pt": "msg",
"to": "authorization_header",
"tot": "flow"
},
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "original_payload.frames",
"tot": "msg",
"dc": true
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 1510,
"y": 200,
"wires": [
[
"eb9f1cfe4f036184",
"7071c05bfb9d9ac7"
]
]
},
{
"id": "eb9f1cfe4f036184",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "debug awtrix request",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 1820,
"y": 380,
"wires": []
},
{
"id": "7071c05bfb9d9ac7",
"type": "http request",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "make awtrix request",
"method": "use",
"ret": "txt",
"paytoqs": "body",
"url": "",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": false,
"headers": [
{
"keyType": "Content-Type",
"keyValue": "",
"valueType": "application/json",
"valueValue": ""
}
],
"x": 1860,
"y": 200,
"wires": [
[
"97fb33089ff4fd73"
]
]
},
{
"id": "97fb33089ff4fd73",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "debug awtrix response",
"active": false,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 2160,
"y": 380,
"wires": []
},
{
"id": "ece47f29798a9a1f",
"type": "inject",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "get WFO and gridX, gridY",
"props": [
{
"p": "payload"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 370,
"y": 440,
"wires": [
[
"eae9209dd318913e"
]
]
},
{
"id": "eae9209dd318913e",
"type": "change",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "configuration",
"rules": [
{
"t": "set",
"p": "latitude",
"pt": "msg",
"to": "40.730610",
"tot": "str"
},
{
"t": "set",
"p": "longitude",
"pt": "msg",
"to": "-73.935242",
"tot": "str"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 590,
"y": 440,
"wires": [
[
"9e4bcd38a1a73d39"
]
]
},
{
"id": "9e4bcd38a1a73d39",
"type": "change",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "generate grid lookup request",
"rules": [
{
"t": "set",
"p": "url",
"pt": "msg",
"to": "https://api.weather.gov/points/{latitude},{longitude}",
"tot": "str"
},
{
"t": "change",
"p": "url",
"pt": "msg",
"from": "{latitude}",
"fromt": "str",
"to": "latitude",
"tot": "msg"
},
{
"t": "change",
"p": "url",
"pt": "msg",
"from": "{longitude}",
"fromt": "str",
"to": "longitude",
"tot": "msg"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 840,
"y": 440,
"wires": [
[
"95f76795e13faa31"
]
]
},
{
"id": "95f76795e13faa31",
"type": "http request",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "make grid lookup request",
"method": "GET",
"ret": "obj",
"paytoqs": "ignore",
"url": "",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "",
"senderr": true,
"headers": [],
"x": 1110,
"y": 440,
"wires": [
[
"6824085062f5947f",
"2ea88619e5304433"
]
]
},
{
"id": "6824085062f5947f",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "debug grid lookup response",
"active": false,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 1380,
"y": 540,
"wires": []
},
{
"id": "2ea88619e5304433",
"type": "template",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "",
"field": "payload",
"fieldType": "msg",
"format": "handlebars",
"syntax": "mustache",
"template": "NWS Weather Forecast Office (WFO):\n{{payload.properties.gridId}}\nLocation gridX:\n{{payload.properties.gridX}}\nLocation gridY:\n{{payload.properties.gridY}}",
"output": "str",
"x": 1380,
"y": 440,
"wires": [
[
"a849b46631023e92"
]
]
},
{
"id": "a849b46631023e92",
"type": "debug",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "printout WFO and gridX, gridY",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 1630,
"y": 440,
"wires": []
},
{
"id": "b7d85c4da0f239fb",
"type": "comment",
"z": "7efaf915ca5b7337",
"g": "97e239f3b23160ca",
"name": "Change configuration in this node to get WFO and gridX, gridY needed for configuration above",
"info": "",
"x": 640,
"y": 380,
"wires": []
}
]Community
Discussion 0
Ask a question, suggest a change or share how you use it.
No comments yet. Start the conversation.
Have an idea?
Sign in to ask questions and join the conversation.
