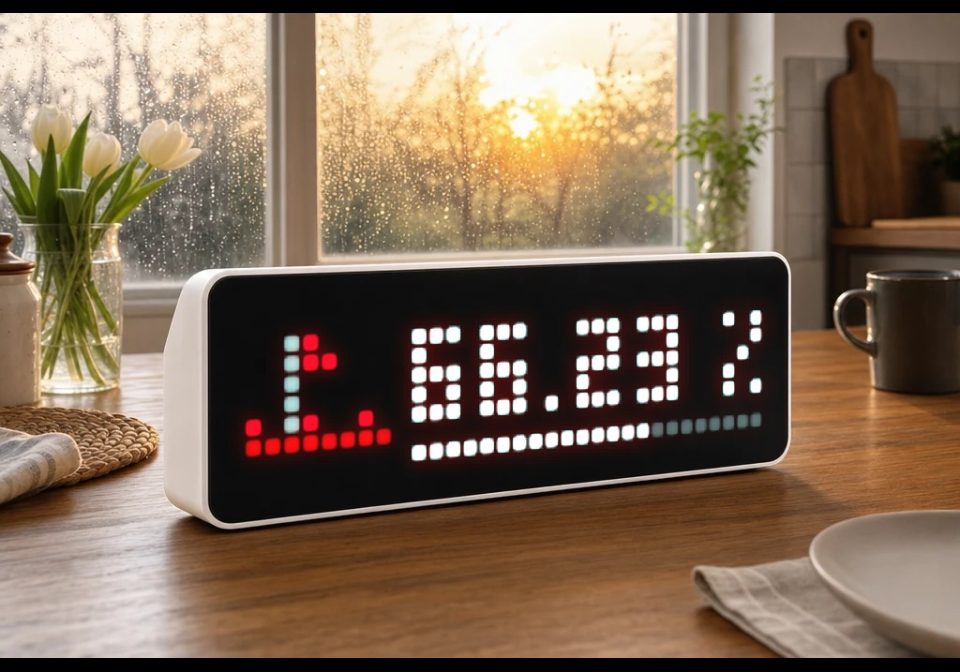

Year Progress

Flow description

# @name    Year Progress
# @desc    Percentage of the current year elapsed, with a progress bar
# @author  Golevka2001
# @version 1.1
# @config  tint  color  "Bar colour"  default=#FFFFFF
# @config  ic    text    "Icon ID"    default="12111"  help="LaMetric icon ID"

import string

class YearProgress
  var mdays, label, frac, tx, tint, track, tc, ic

  def init()
    self.mdays = [31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31]
    self.label = "--"
    self.frac = 0
    self.tx = 9
    self.tint = 0xFFFFFF
    self.track = 0x3F3F3F
    self.tc = 0xFFFFFF
    self.ic = ""
  end

  # fill the display state before the first frame
  def setup()
    self.loop()
  end

  def loop()
    # wall-clock calls answer -1 until the clock has synced
    if year() < 0 return end
    var y = year()
    var m = month()
    var doy = day()
    if m >= 2
      for i : 0 .. m - 2
        doy += self.mdays[i]
      end
    end
    var leap = (y % 4 == 0 && y % 100 != 0) || y % 400 == 0
    if leap && m > 2
      doy += 1
    end
    var days = leap ? 366 : 365
    var elapsed = (doy - 1) * 86400 + hour() * 3600 + minute() * 60 + second()
    self.frac = clamp(elapsed * 100.0 / (days * 86400), 0.0, 100.0)

    self.label = string.format("%.2f", self.frac) + " %"
    self.tx = 9 + int((width() - 9 - text_ink_width(self.label)) / 2)

    # tint feeds the bit-ops below -- nil would kill the app, so guard it
    self.tint = store.get("tint")
    if self.tint == nil self.tint = 0xFFFFFF end
    # unlit track = the tint at quarter brightness, per channel (dividing the
    # packed integer would bleed red into green)
    self.track = rgb(((self.tint >> 16) & 0xFF) / 4, ((self.tint >> 8) & 0xFF) / 4, (self.tint & 0xFF) / 4)
    self.ic = store.get("ic")
    self.tc = settings.get("textColor")
    if self.tc == nil self.tc = 0xFFFFFF end
  end

  def draw()
    clear()
    if !icon(self.ic, 0, 0)
      rect_fill(0, 0, 8, 8, 0x222222)
    end
    # baseline 6: glyphs ink rows 1..5, leaving row 7 free for the bar
    text(self.tx, 6, self.label, self.tc)
    var w = width() - 9
    rect_fill(9, 7, w, 1, self.track)
    var filled = round(w * self.frac / 100)
    if filled > 0
      rect_fill(9, 7, filled, 1, self.tint)
    end
  end
end

return YearProgress()

This flow uses the following icons. Add them to your AWTRIX along with the flow.

Sign in to download these icons or send them to your AWTRIX.
